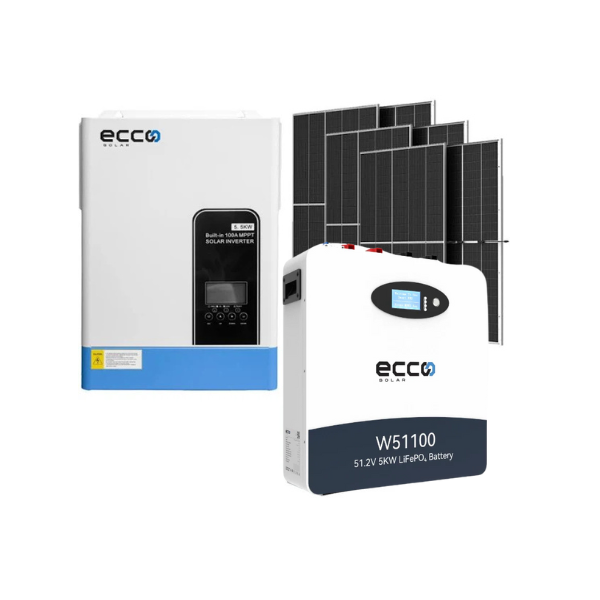

5.5KVA ECCO 5500W Hybrid Inverter and Battery ECCO 5.12 KWH Lithium Battery 6 X 445W Bifical Solar Panels

1. Product Overview

5.5KVA ECCO 5500 Hybrid Inverter and Battery Watt 48V ECCO 5.12 KWH Lithium Battery 6 X 445W Bifacial Solar Panels

2. Inverter Specifications

5.5 Kva 5500w Hybrid Inverter 48v Mppt 100a Inverter Pure Sine Wave - Ecco+ Non

• High Voltage: VDC500V

• Power Output: 5.5KVA/5500W

• Current: 100A Pure Sine Wave Solar Inverter

Features

• Pure sine wave

• Power factor 1.0

• PV input Voltage 60Vdc-500Vdc

• Built-in MPPT 100A

• Capable to work without battery

• RS485 BMS Communication

• Lithium battery activation

• Detachable dust cover for harsh environment

• WiFi remote monitoring optional

• Support multiple output priority: UTL, SOL, SBU, SUB

• EQ function to optimize battery performance and extend lifecycle

Dimensions & Weight

• Dimensions: 438 x 295 x 105mm

• Weight: 9kg

3. Important Installation Note

It is recommended to use ECCO Batteries and Solar Panels for Quality Guaranteed Results.

This product requires installation by a qualified PV installer, who must be able to issue a Certificate of Compliance. This ensures that the installation is safe, correct, and within the scope of relevant regulations.

What's in the Box

1. 1 x ECCO 5.5KW Inverter

2. 1 x Wifi Monitoring Module

3. 1 x Connecting Cables

4. 1 x User Guide

4. Warranty

• 5-Year Repair Warranty

5. ECCO Lithium Ion Battery 51.2V 100AH 5.1KWH Wall Mounted

Features

• Wall-mounted design, easy to install, and aesthetic

• Adopts lithium iron phosphate battery cell, safe to use, long life cycle

• Maximum 1C charge/discharge

• User-friendly human-machine interface

• Compatible with multiple brands of inverters at the same time

• Supports a maximum of 16 parallel groups

• Meets North American UL, EU TUV standards

Benefits

• Longer Cycle Life: Up to 20 times longer than a lead acid battery

• Lighter Weight: About 40% of the weight of a comparable lead acid battery

• Higher Power: Delivers twice the power of a lead acid battery

• Wider Temperature Range: -20 C~60 C

• Superior Safety: Eliminates the risk of explosion or combustion

What's in the Box

1. Battery

2. Battery Cables & Mounts Included

Battery Parameters:

• Battery Type: USE
• Bulk Charge Voltage: 56.4V
• Float Charge Voltage: 54.5V
• Cut-Off Voltage: 43V
• Charging Amps: 30A

Battery Specifications:

• Nominal Voltage: 51.2V
• Nominal Capacity: 100Ah
• Total Power Output: 5.12kWh
• Operating Voltage Range: 43V – 54.5V
• Short Circuit Protection: Yes
• Reverse Connection Protection: Optional
• Maximum Charging Voltage: 57.6V
• Recommended Charging Voltage: 56.4V
• Maximum Continuous Output Power: 5500W
• Peak Output Power: 7500W
• Local Parameter Configuration: Supported
• Installation Dimensions: 480mm x 170mm x 500mm
• Package Size: 590mm x 290mm x 615mm
• Weight: 49kg
• IP Class: IP54 (Weather-resistant design)
• Communication: RS485, RS232, CAN
• Design Life: 15 Years

6. 445W Bifacial Solar Panel

Features

• MECHANICAL DATA
  Cell	Mono
  Weight	21.5kg
  Dimensions	1722±2mm*1134±2mm*30±1mm
  Cable Cross Section Size	4mm²(IEC)，12 AWG(UL)
  No. of cells	108(6*18)
  J-Box	IP68, 3 diodes
  Connector	QC 4.10-351/ MC4-EVO2A




  ELECTRICAL DATE(STC)
  Rated Maximum Power(Pmax)[W]	420	425	430	435	440	445
  Power Tolerance	0~+3%
  Open Circuit Voltage(Voc) [V]	38.28	38.56	38.84	39.11	39.38	39.65
  Maximum Power Voltage(Vmp) [V]	32.38	32.64	32.88	33.13	33.37	33.64
  Short Circuit Current(lsc) [A]	13.65	13.7	13.75	13.8	13.85	13.9
  Maximum Power Current(lmp) [A]	12.97	13.02	13.08	13.13	13.18	13.23
  Module Efficiency[%]	21.50%	21.80%	22.00%	22.30%	22.50%	22.80%

7. Package Includes

1. 1x ECCO Lithium Ion Battery 51.2V 100AH 5.1KWH Wall Mounted (5 Years Warranty)

2. 1x 5.5 Kva 5500w Hybrid Inverter 48 Mppt 100a Inverter Pure Sine Wave

3. 6x 445W Bifacial Solar Panels

(Courier for panels is at your own risk)

8. Optional Add-on: Solar Installation Kit

• Solar Installation Kit for 6 Solar Panels, Inverter, and Battery

9. Warranty Requirements All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour.

A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system.

The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC, and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null and void.
