Luxpower 5KVA Inverter and Battery Dyness 5.12KW Lithium Battery + 6X 460W Solar Panels
Luxpower 5KVA Inverter and Battery Dyness 5.12KW Lithium Battery + 6X 460W Solar Panels
Low stock: 5 left
Couldn't load pickup availability

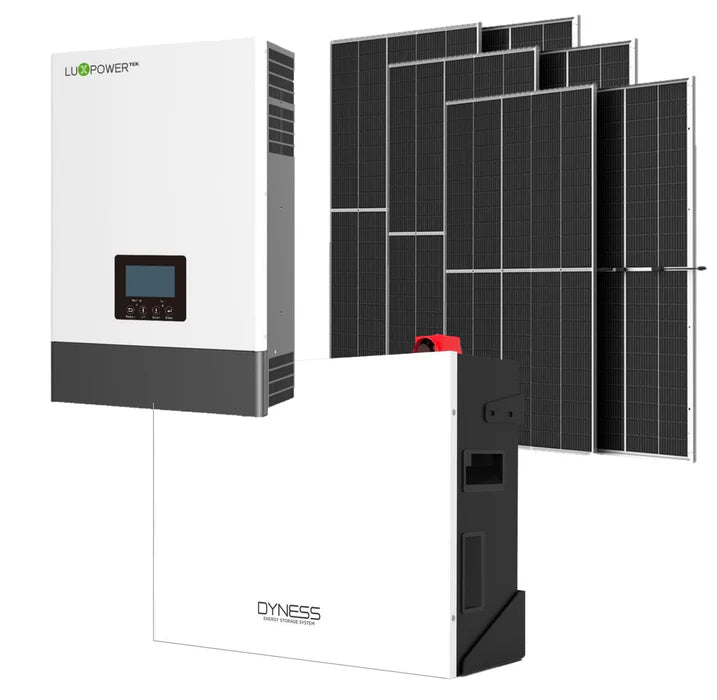

Luxpower 5KVA Inverter and Battery Combo Dyness 5.12KW Lithium Battery + 6X 460W Solar Panels
LuxPower 5kW Inverter – SNA5000 Hybrid Inverter
General:
Model: SNA 5000 WPV
Warranty: 2years.
Battery voltage: 48VDC.
Output:
Rated power: 5000W/5000VA.
Parallel capacity: YES.
Normal output voltage: 230/240, Split phase 220/110 Vac.
Normal output frequency: 50/60Hz.
Surge power: 10000VA.
Switch time: 10ms.
Waveform: Pure sine wave.
Battery:
Battery Type: Lithium/Lead-Acid.
Normal Voltage: 51.2V/48V.
Max. Charge Voltage: 59V.
Solar:
Max. Recommended PV Power: 3200W/3200W.
MPPT Tracker: 2.
Max. PV Open Circuit Voltage: 480Vdc.
MPPT Voltage Range: 100-385Vdc.
Max. Solar Charge Current: 100A.
Max. Solar Input Current: 13A/13A.
Max. MPPT Eiciency: >98%.
Parallel MPPT Charger: YES.
Dyness Lithium Battery (51.2V100AH 5.12 KWH)
Solar Battery – Unlock the Power of Solar Independence with the Dyness 5.12kWh Lithium Battery
UPGRADED TO 1C
Introducing the Dyness BX51100, a remarkable innovation in renewable energy storage. The BX51100 is a 5.12kWh Lithium-ion solar Battery Module pack equipped with a cutting-edge BMS (Battery Management System) that provides robust protection against overcharging, over-discharging, and short circuits. This powerful battery delivers continuous output power for enhanced performance and unparalleled reliability.
Key Specifications:
- Capacity: 5.12kWh
- Battery Type: Lithium-ion
- Continuous Output Power
- Battery Management System (BMS): Yes
- Protection Features: Overcharging, Over-discharging, Short Circuit Protection
- Cycle Life: Ensuring a long-lasting energy solution
Combo includes:
- 1x Dyness BX51100 Lithium Battery (51.2V100AH 5.12 KWH) (10-year warranty)
- 1x LuxPower 5kW Inverter – SNA5000 Hybrid Inverter (2 year warranty)
- 6x 460w Mono Solar Panel HiKu6 Mono
- Battery Cables And Brackets Included
-
(Courier for panels are at your own risk)
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC, and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
