Ultra Solar City

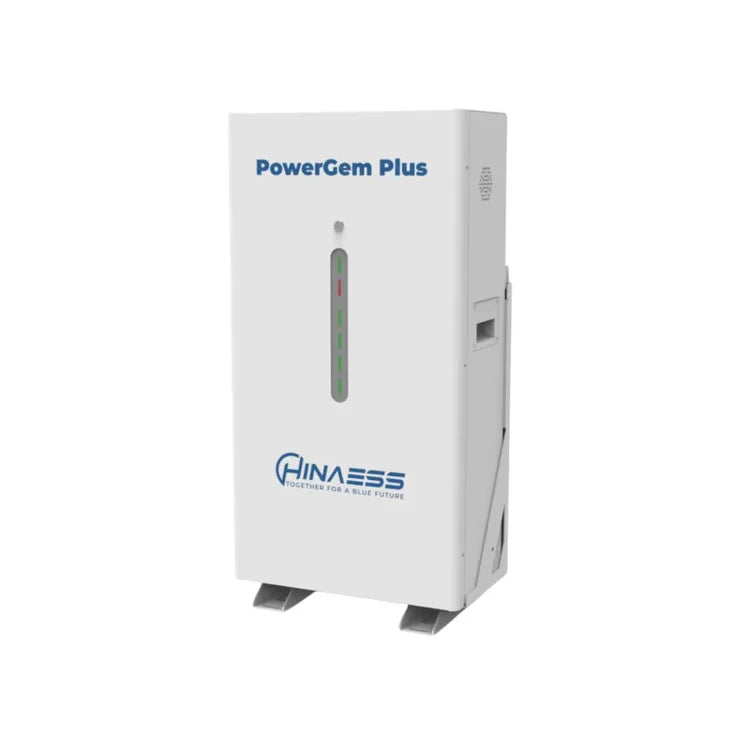

14.3kwh HINA ESS PowerGem PLUS Lithium Battery
14.3kwh HINA ESS PowerGem PLUS Lithium Battery
Regular price
R 28,950.00
Regular price
R 31,000.00
Sale price
R 28,950.00
Unit price
/
per
Shipping calculated at checkout.
Low stock: 5 left
Couldn't load pickup availability
FEATURES
Neat
- 10 year manufacturers warranty
- Ultra safe LFP material
- Elegant enclosure design Floor-standing / wall-mounting
Handy
- Quick installation
- Remote monitoring
- Flexible remote upgrade
- Auto-addressing for master / slaves set up
Robust
- Parallel up to 32 modules
- Wide range inverter compatibility
- continuous charge/discharge
- Multi protection to avoid over discharge
- Smart BMS management for longer lifespan Active balancing charging, low self consumption
General Data
• Model: PowerGem Plus
• Cell Type: LFP
• C Rating: 0.5C
• Rated Power: 14.3KWH
• Rated Capacity: 280AH
• Rated Voltage: 51.2V
• Charge Voltage: 56.5V
• Maximum Charge Current: 140A
• Maximum Discharge Current: 150A
• Discharge Peak Current: 160A @ 15s / 180A @ 0.5s
• Parallel: Maximum 32 Units (No additional hardware required)
• Monitoring: Remote Monitoring & Maintenance
• Wide Inverter Compatibility
Mechanical Data
• IP Level: IP20
• Communication: CAN / RS485
• Humidity: 5% to 85% Non-Condensing
• Work Temperature: -20°C to 55°C
• Storage Temperature: -10°C to 35°C
• Installation: Floor Standing / Wall Mount
