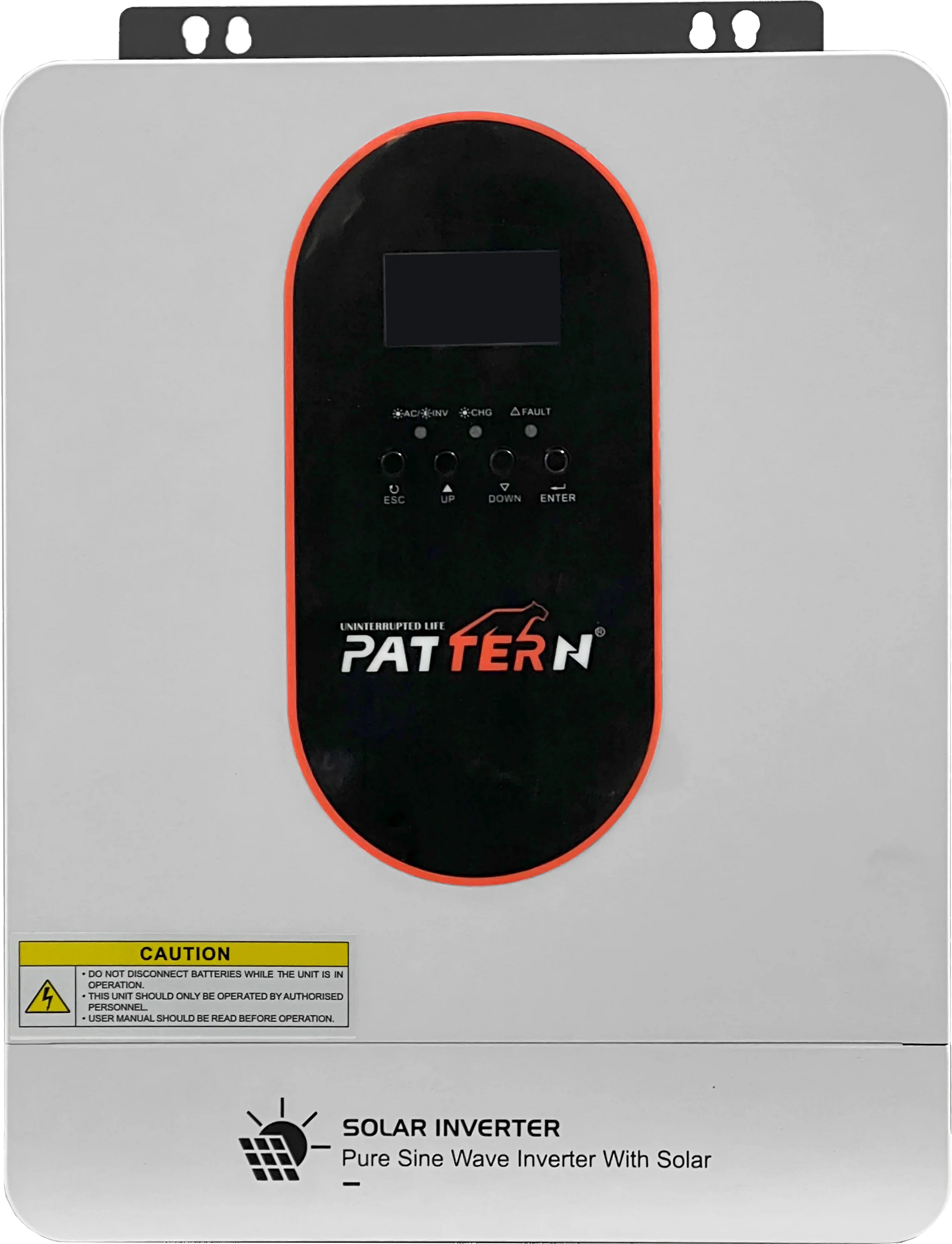

3.2kva 24v 3200W 100A MPPT Hybrid Inverter - Pattern

Hybrid Inverter 24v 3.2 Kva 3200w MPPT 100A Inverter Pure Sine Wave with BMS - Pattern

Model Name : PT-HD3224

Inverter Mode :
Rated Power : 3200VA/3200W
Nominal Voltage : 24V

BMS Enable : Yes

Ac Charger Mode :
AC Input : 230VAC 50/60HZ
MAX Charge Current : 60A
Max Charger Current AC+PV : 100A
AC Ouptut : 230VAC

Solar Charger Mode:
Max PV Array Power: 3000W
Min Solar Voltage : 30VDC
Max Solar Voltage (VOC) : 500VDC
Max MPPT Charge Current : 100A

 Size:

359 x 295 x 100

7kg

• 1-Year Repair Warranty

Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
