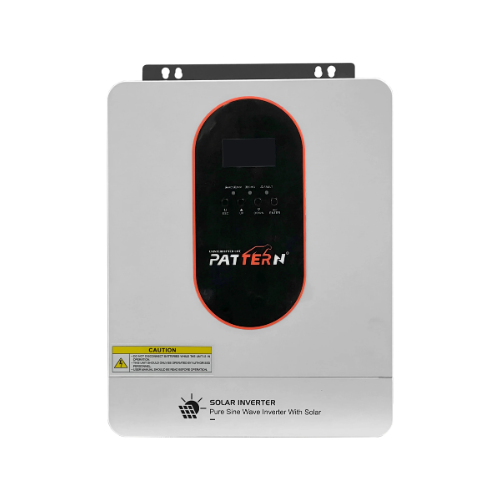

3kva inverter 24v 3200W 100A MPPT Hybrid Inverter - Pattern
3kva inverter 24v 3200W 100A MPPT Hybrid Inverter - Pattern
Low stock: 10 left
Couldn't load pickup availability
Pattern 3kVA Inverter | 24V 3200W Hybrid Pure Sine Wave Solar Inverter with BMS
Pattern 3kVA Inverter for Solar Backup & Energy Storage Systems
The Pattern 3kVA inverter is a reliable and efficient hybrid solar inverter designed for residential backup power, off-grid applications, and small energy storage systems. Delivering 3200W pure sine wave power output, this advanced inverter combines solar charging, battery storage, and AC grid power to provide stable and uninterrupted electricity.
Built for modern solar installations, the 3kVA inverter features a powerful 100A MPPT solar charge controller that maximizes solar energy generation and supports up to 3000W PV input power. Its intelligent charging system ensures efficient battery management while helping extend battery performance and lifespan.
The Pattern 3kVA hybrid inverter operates on a 24V battery system and includes BMS communication support for compatible lithium batteries. The pure sine wave output provides clean and stable power, making it suitable for sensitive appliances such as refrigerators, televisions, computers, pumps, and other household equipment.
Compact, lightweight, and easy to install, this 24V hybrid inverter is an ideal solution for homes, small businesses, cabins, and off-grid solar systems requiring reliable backup power.
Key Features
- High-performance 3kVA inverter
- Rated output: 3200W / 3200VA
- Advanced 3kVA hybrid inverter technology
- Pure sine wave output for sensitive electronics
- 24V solar inverter system compatibility
- Built-in BMS communication support
- Powerful 100A MPPT solar charge controller
- Maximum PV input power: 3000W
- Supports solar, battery, and AC charging
- Intelligent battery charging and protection
- Compact design weighing only 7kg
- Suitable for residential and off-grid applications
Technical Specifications
| Specification | Details |
|---|---|
| Model | PT-HD3224 |
| Inverter Type | Hybrid Solar Inverter |
| Rated Power | 3200VA / 3200W |
| Battery Voltage | 24VDC |
| Output Waveform | Pure Sine Wave |
| BMS Communication | Yes |
| AC Input Voltage | 230VAC |
| AC Input Frequency | 50/60Hz |
| Maximum AC Charging Current | 60A |
| Maximum AC + PV Charging Current | 100A |
| AC Output Voltage | 230VAC |
| Maximum PV Array Power | 3000W |
| Minimum Solar Voltage | 30VDC |
| Maximum PV Voltage (VOC) | 500VDC |
| Maximum MPPT Charge Current | 100A |
| Dimensions | 359 × 295 × 100 mm |
| Weight | 7kg |
Applications
The Pattern 3kVA inverter is suitable for:
- Home solar backup systems
- Load shedding solutions
- Small business backup power
- Off-grid solar installations
- Lithium battery energy storage systems
- Cabins and remote locations
- Solar hybrid power systems
Why Choose the Pattern 3kVA Inverter?
The Pattern 3kVA inverter provides an affordable and efficient solution for users looking to combine solar power, battery storage, and grid electricity. With a built-in 100A MPPT controller, pure sine wave technology, and lithium battery BMS compatibility, this 3kVA hybrid inverter delivers reliable power management for everyday energy needs.
Whether you need backup power during outages or a complete solar energy solution, the Pattern 24V hybrid inverter offers excellent efficiency, dependable performance, and easy installation.
Warranty
The Pattern 3kVA inverter includes a 1-year repair warranty.
Installation Requirements
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with valid registration with the Department of Labour. A valid electrical Certificate of Compliance (COC) must be issued after installation. The installation must comply with SANS 10142 and all applicable requirements.
Warranty claims submitted without installation photos, a valid COC, and proof of installation by a qualified wireman/master electrician may be rejected and considered null and void.
