48v 100ah 4.8kwh A Grade Lithium Battery-Sunsolar

48v 100ah 4.8kwh A Grade Lithium Battery-Sunsolar

Regular price R 14,800.00
Regular price R 16,400.00 Sale price R 14,800.00
Sale Sold out
Shipping calculated at checkout.

SunSolar 48v 100ah 4.8kWh Lithium Battery CNN4810RN Wall-Mounted

THIS BATTERY CAN BE PARALLELED WITH SVOLT 48V 106AH

  • + Wall-mounted design, easy to install, and aesthetic
    + Adopts lithium iron phosphate battery cell, safe to use, long life cycle
    + Maximum 1C charge/discharge
    + User-friendly human-machine inter face
    + Compatible with multiple brands of inverters at the same time
    + Supports a maximum of 16 parallel groups
    + Meet North American UL, EU TUV standards

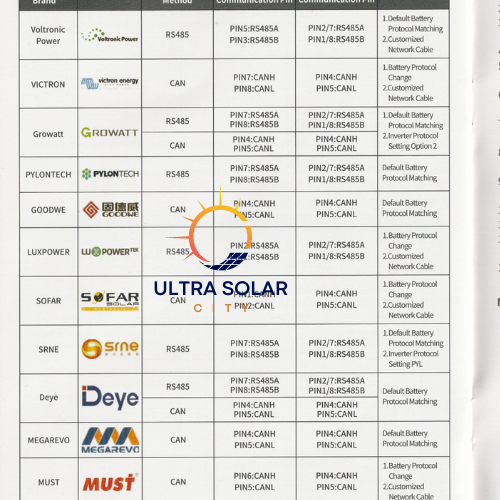

  • Compatible with all major inverter Brands

Longer Cycle Life: Offers up to 20 times longer cycle life and five times longer float/calendar life than a lead acid battery, helping to minimize replacement cost and reduce the total cost of ownership. Lighter Weight: About 40% of the weight of a comparable lead acid battery. A ‘drop in’ replacement for lead acid batteries. Higher Power: Delivers twice the power of the lead acid battery, even high discharge rate, while maintaining high energy capacity. Wider Temperature Range: -20 C~60 C. Superior Safety: Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact, overcharging, or short circuit situations.

What’s in the box:

Battery

Communication Cable

Battery Cables & Mounts Included

Battery Parameters:

Energy 4.8KWH
Installation Type Wall Mounted
Nominal Voltage 48v
Nominal Capacity 100Ah
Dimensions 47 x 15 x 52 CM
Weight 46.2KG
Case Material SPCC
BMS Build-In Yes
Efficiency 97%
Self Discharge Per Month 3%
Max Parallels Connectors 16PCS
Series Connections Not Allowed
Cycle Life (0.3C,25’C@90%DOD) 6000 Cycles
Max Continues Discharge Current 100A
Peak Discharge Current 150A

Communication RS485, RS232, CAN
Design Life 15 years

Warranties:

5 Years Warranty
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
