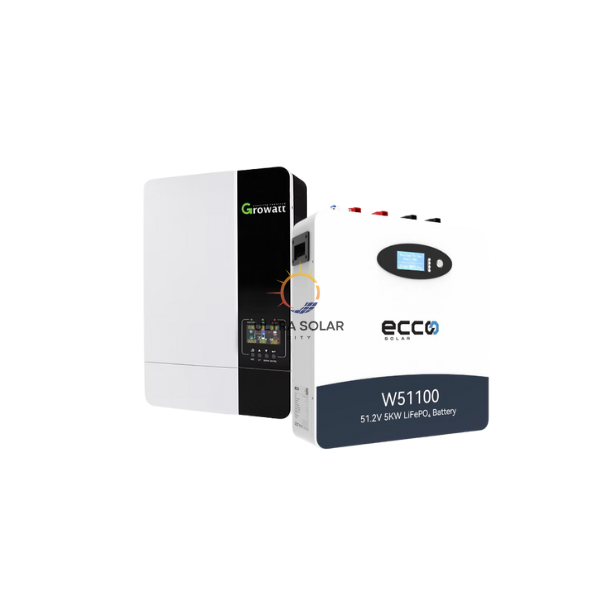

Hybrid Inverter Solar Kit Combo – 5KW MPPT Growatt & 5.12KWh Lithium Battery

Inverter Specifications

Functions

• Integrated MPPT charger controller.
• Equalization charging function.
• Max PV input up to 450vDC.
• Choose grid or solar input priority.
• WIFI/GPRS remote monitoring.
• Parallel up to 6 inverters.
• PV & Grid Power combine if PV energy is insufficient for load.
• Flexible schedule for charging and discharging the batteries.
• Warranty: 2 years

General Specifications

• Module: SPF 5000 ES.
• Battery voltage: 48vDC.
• Battery type: Lithium/Lead-acid.

Inverter Output [AC]

• Rated Power: 5000W.
• AC Voltage Regulation (Battery): 230VAC ± 5%.
• Surge Power: 10000VA for 5 sec.
• Efficiency (Peak): 93%.
• Waveform: Pure sine wave.
• Transfer Time: 10ms – 20ms.

Solar Charger

• Maximum PV Array Power: 6000W.
• MPPT Range @ Operating Voltage: 120VDC – 430VDC.
• Maximum PV Array Open Circuit Voltage: 450vDC.
• Maximum Solar Charge Current: 100 A.

AC Charger

• AC Charge Current: 80A.
• AC Input Voltage: 230 VAC.
• Selectable Voltage Range: 230 VAC.
• Frequency Range : 50 Hz/60 Hz (Auto sensing).

Battery Specifications

• Nominal Voltage (V): 51.2
• Nominal Capacity (Ah): 100
• Total Power (kWh): 5.12
• Best Operating Voltage Range (V): 43-54.5
• Short Circuit Protection: Yes
• Power-on Reverse Connection Protection: Optional
• Maximum Charging Voltage (V): 57.6
• Best Charging Voltage (V): 56.4 (Recommended)
• Maximum Continuous Output Power (W): 5500
• Maximum Momentary Output Power (W): 7500
• Local Parameter Configuration: Supported
• Max Installation Dimension (mm): 480170500
• Package Size (mm): 590290615
• Weight (kg): 49
• IP Class: IP 54
• Communication: RS485, RS232, CAN
• Design Life: 15 years

Combo Includes

• 1x Growatt Off-Grid Solar Inverter 5kW
• 1x Growatt WiFi Dongle
• 1x Ecco 51.2V 100Ah 5.12kWh Lithium Battery W51100 Wall-Mounted (5 Years Warranty)
• Battery Cables Included
