Ultra Solar City

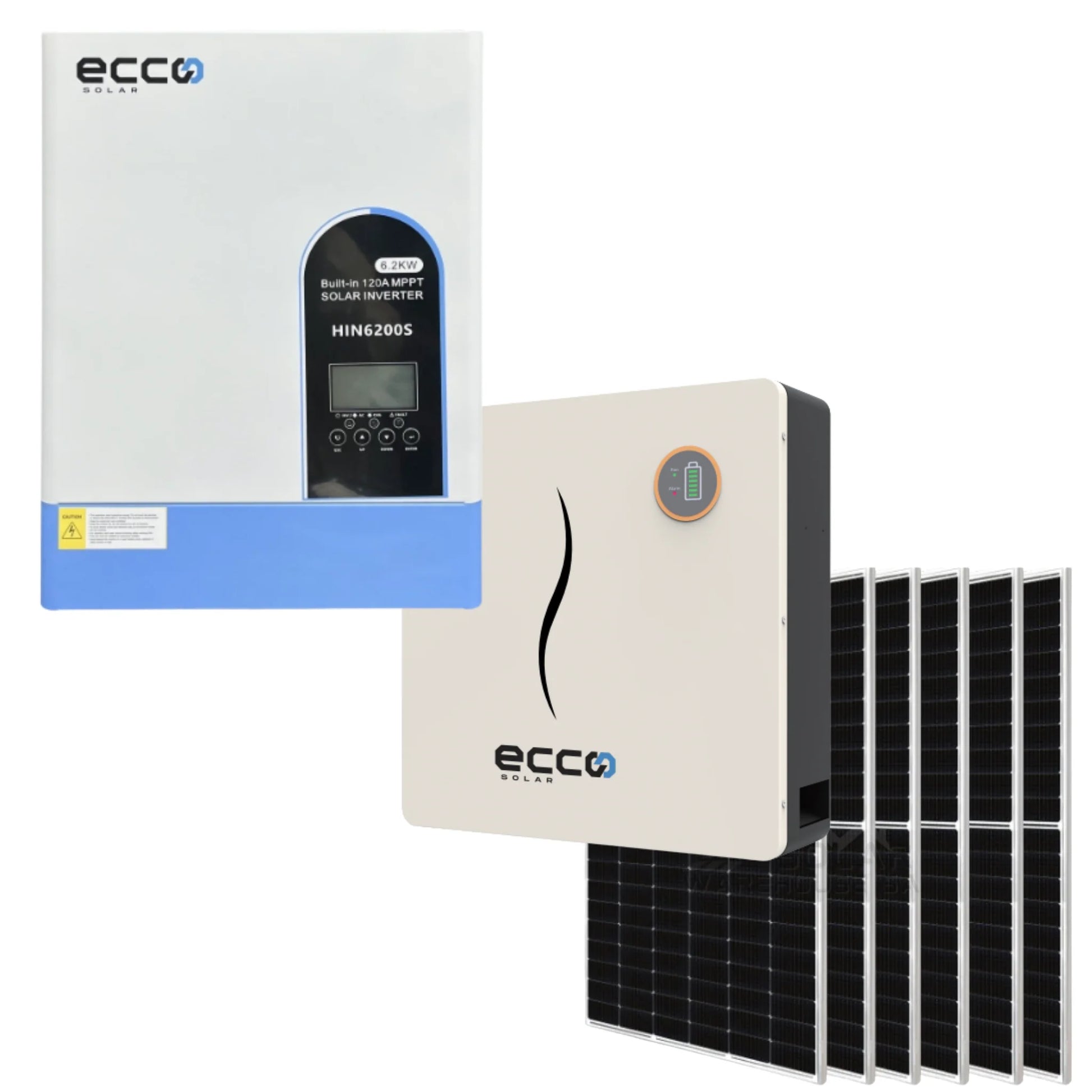

6.2KVA/6200W Ecco MPPT AND 5.12 KWH Ecco Battery 6X 460W Mono Solar Panels Inverter Combo

6.2KVA/6200W Ecco MPPT AND 5.12 KWH Ecco Battery 6X 460W Mono Solar Panels Inverter Combo

R 25,200.00
R 27,000.00 R 25,200.00
Sale Sold out
Shipping calculated at checkout.

Low stock: 6 left

6.2KVA/6200W Ecco MPPT Combo 1 X 5.12 KWH AH Battery 6X 460W Mono Solar Panels Inverter Combo

Overcome load shedding with this premium hybrid inverter load-shedding Combo

The main difference between PWM and MPPT charge control devices is that the MPPT devices are more efficient. MPPT charge control devices have 30 % more efficient in charge efficiency according to PWM type. Panel voltage and battery voltage should be matched in PWM systems.

Hybrid Inverter 48v 6.2 Kva 6200w MPPT 120A Inverter Pure Sine Wave - Ecco

Features
- Dual output for smart load management
- Lithium battery activation function by PV or Utility - Compatible work with LiFePO4 battery via RS485 - PV Input 500 Vdc Max
- Built-in MPPT 120A
- Capable to work without battery
- Detachable dust cover for harsh environment
- Wifi remote monitoring optional
- Support multiple output priority: UTL, SOL, SBU, SUB - EQ function to optimize battery performance and extend lifecycle

What's in the box
1 x Inverter
1 x User Manual


Battery Specifications:

    Specifications:

    Nominal Voltage (V) 51.2
    Nominal Capacity (Ah) 100
    Total Power (kWh) 5.12
    Charge Voltage (V) 56.16 V
    Discharge Voltage (V) 44.8 V


    Dimensions (mm) 500 X 494 X 145
    Weight (kg) 45

    Combo Includes:

    1x Ecco 51.2v 100ah 5.12kWh Lithium Battery Wall-Mounted ( 5 Years Warranty)
    1x Hybrid Inverter Ecco 6.2KVA 6200W Watt MPPT(5 Years Warranty)
    6x Conderenergy 460w Mono Solar Panel (12 years warranty)
    PLEASE NOTE COURIER FOR SOLAR PANELS ARE AT YOUR OWN RISK

    Warranties:
    All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
