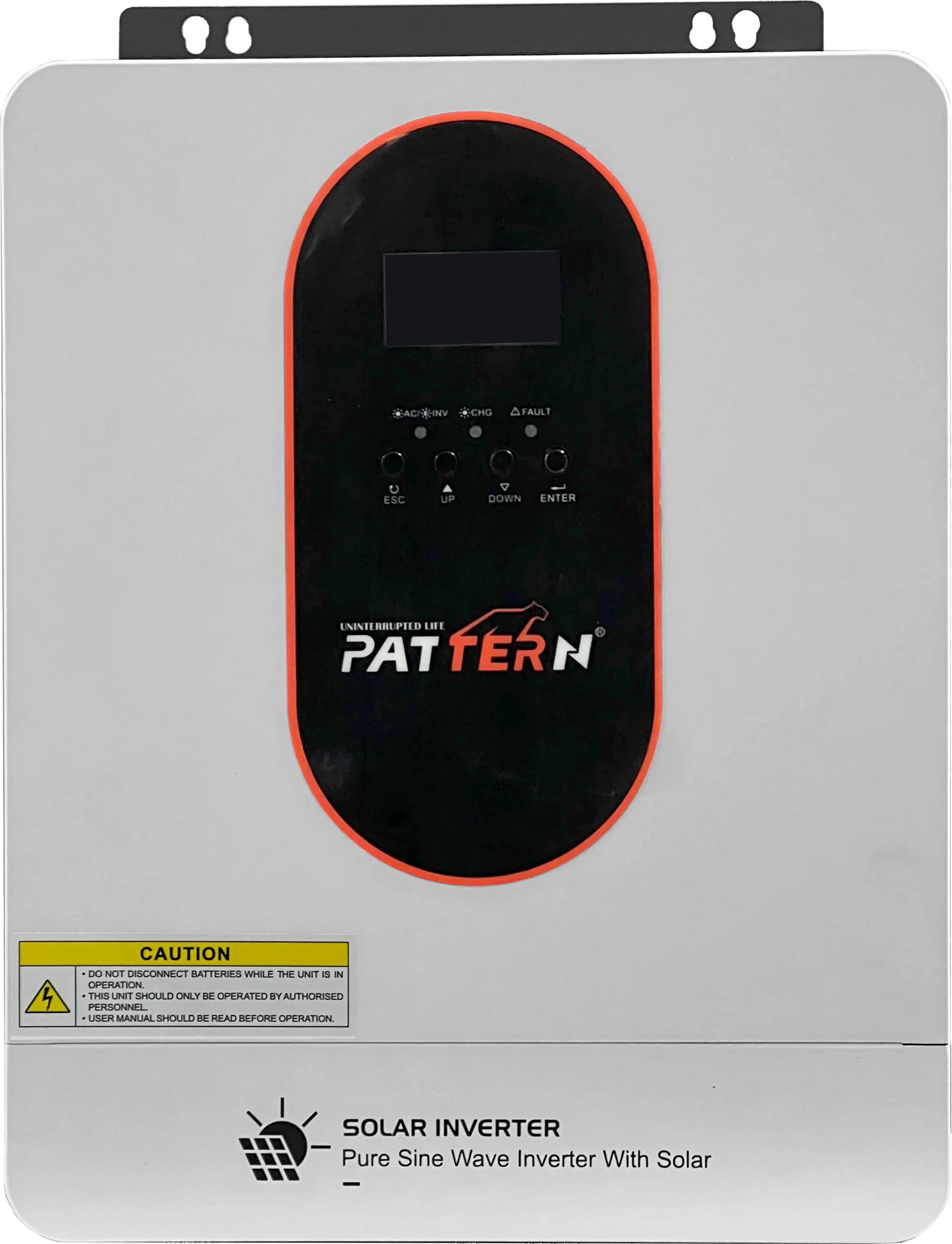

6.2KVA / 6200W Pattern Hybrid Inverter 120A MPPT

6.2KVA / 6200W Pattern Hybrid Inverter 120A MPPT

The Pattern 6.2kVA Hybrid Inverter is a reliable and energy-efficient solar inverter designed for homes and small businesses. Featuring pure sine wave output, intelligent battery management, and high solar charging efficiency, it seamlessly integrates solar panels, batteries, and the utility grid. Ideal for reducing electricity costs while providing dependable backup power during outages.

MODEL:          6.2kW hybrid solar inverter with MPPT charger

Input Formation: Single Phase
AC INPUT:        220/230/240VAC
INPUT VOLTAGE RANGE: 90-280VAC±3V(Normal Mode)    170-280VAC±3V (UPS Mode)
Frequency:   50/60hz±0.1%
Output wave: Pure Shine wave
Peak Power:  6200W/6500W
Rated Voltage: 48V
Peak Efficiency: ＞95%
Peak Power:  12400VA
Overload Ability:Battery Mode: 11s@105%~150% Load; 2s@150%~200% Load;   400ms@>200% Load
Grid Voltage Range: 170-265VAC
Grid Frequency Range: 49-51±1Hz/59-61±1Hz
Output Current:  26.9A
Battery:
Rated Voltage:  48VDC
PV Charging Method: MPPT
PV input & Charging
Max Pv Input:  8500W
MPPT Tracking Range: 60-500VDC
Max Pv input Voltage: 500VDC
Max Pv charge current: 120A
Max Ac Charge Current: 100A
Max Charge Current: 120A

Communication & Display
LCD: Can display operating mode/load/input/output
Communicate：RS485 with Lithium Battery BMS Communication
RS232

Operating Temperature: -10°to +50°

Warranty period: 2 Years
