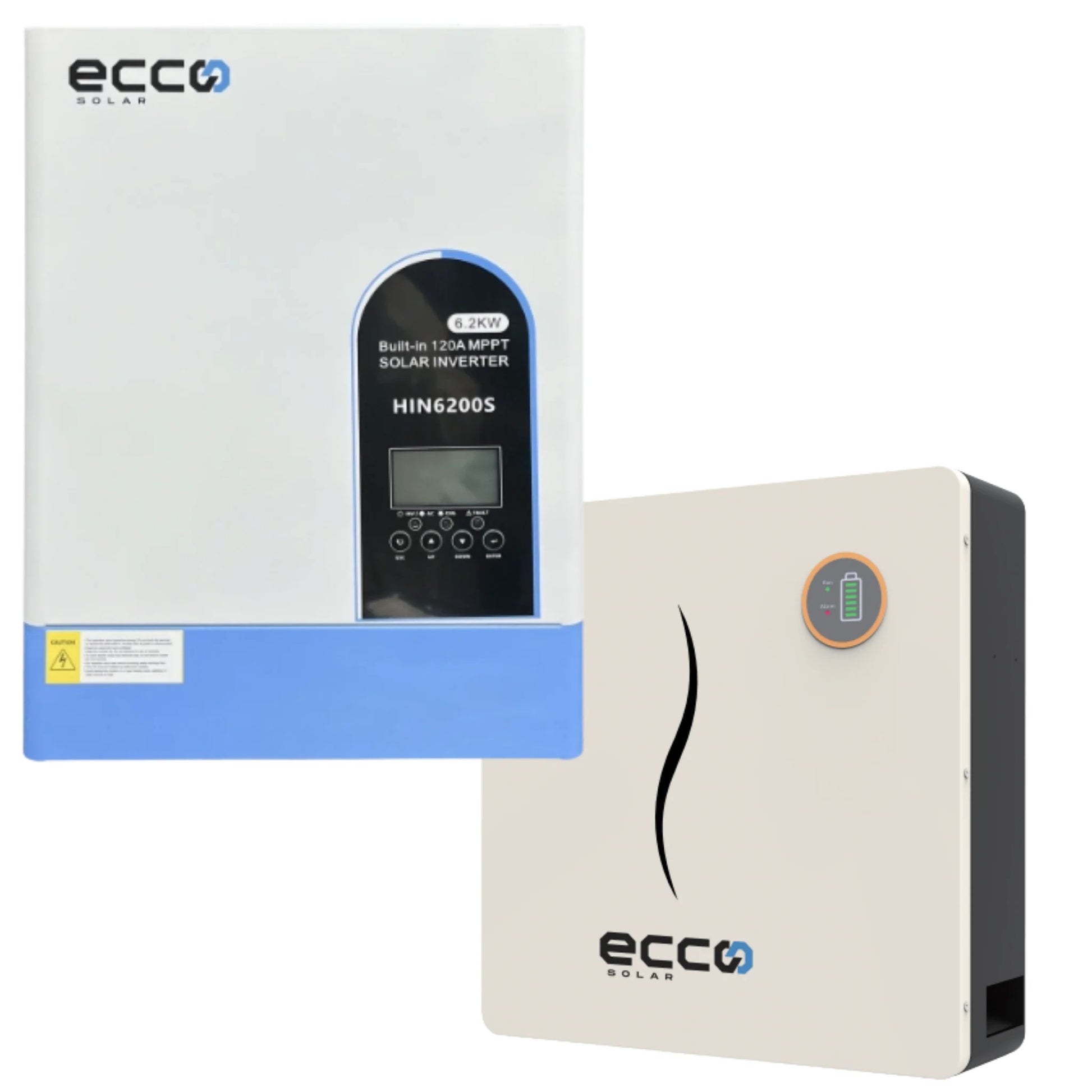

Hybrid Inverter Solar Kit – 6.2KVA MPPT Pure Sine Wave Load Shedding Combo (6200W, 5.12KWH Lithium Battery)

Hybrid Inverter – 48V 6.2KVA 6200W MPPT 120A Pure Sine Wave - Ecco

Key Features:

• Dual Output for Smart Load Management – Prioritize essential loads during power outages.
• Lithium Battery Activation Function – Activates via PV (solar) or utility power.
• Compatible with LiFePO4 Batteries – Seamless communication via RS485.
• High PV Input Capacity – Supports up to 500V DC input for optimal solar power conversion.
• Built-in MPPT 120A – Advanced solar charge controller for efficient energy use.
• Battery-Free Operation – Capable of running without a battery, making it versatile.
• Detachable Dust Cover – Designed for harsh environments to prevent dust buildup.
• WiFi Remote Monitoring (Optional) – Easily monitor system performance via a WiFi dongle.
• Multiple Output Priority Modes: Choose between UTL, SOL, SBU, and SUB to optimize energy distribution.
• EQ Function for Battery Optimization – Extends battery life and ensures peak performance.

What’s in the Box?

• 1x Ecco 6.2KVA Hybrid Inverter

Battery Specifications – 51.2V 100Ah 5.12kWh Lithium Battery

What's in the Box?

• 1x Ecco 51.2V 100Ah 5.12kWh Lithium Battery (Wall-Mounted, 5-Year Warranty)
• Battery Cables & Mounts Included

Battery Parameters:

• Battery Type: USE
• Bulk Charge Voltage: 56.4V
• Float Charge Voltage: 54.5V
• Cut-Off Voltage: 43V
• Charging Amps: 30A

Battery Specifications:

• Nominal Voltage: 51.2V
• Nominal Capacity: 100Ah
• Total Power Output: 5.12kWh
• Operating Voltage Range: 43V – 54.5V
• Short Circuit Protection: Yes
• Reverse Connection Protection: Optional
• Maximum Charging Voltage: 57.6V
• Recommended Charging Voltage: 56.4V
• Maximum Continuous Output Power: 5500W
• Peak Output Power: 7500W
• Local Parameter Configuration: Supported
• Installation Dimensions: 480mm x 170mm x 500mm
• Package Size: 590mm x 290mm x 615mm
• Weight: 49kg
• IP Class: IP54 (Weather-resistant design)
• Communication: RS485, RS232, CAN
• Design Life: 15 Years

Complete Load Shedding Solution – What’s Included in the Combo?

• 1x Ecco 6.2KVA 6200W Hybrid Inverter (5-Year Warranty)
• 1x Ecco 51.2V 100Ah 5.12kWh Lithium Battery (5-Year Warranty)

Warranty Information – Important Notice

To ensure the validity of the 5-year warranty, installation must be carried out by a qualified electrical wireman or Master Electrician with valid registration from the Department of Labour.

A valid Electrical Certificate of Compliance (COC) must be issued after installation, specifically for the backup or solar system.
