Ultra Solar City

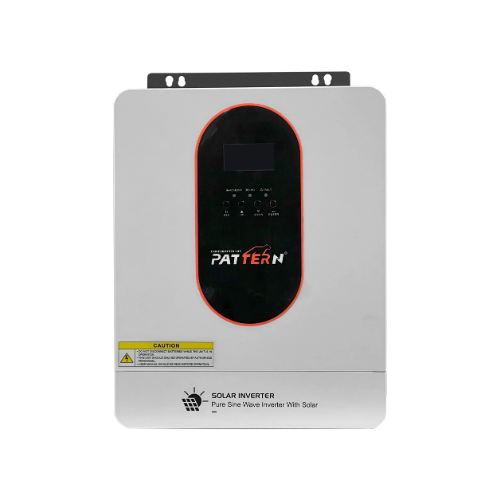

6.2KVA / 6200W Hybrid Inverter 120A MPPT - Pattern

6.2KVA / 6200W Hybrid Inverter 120A MPPT - Pattern

R 5,100.00
R 5,100.00
Sale Sold out
Shipping calculated at checkout.

Low stock: 10 left

Pattern 6.2kVA Hybrid Inverter | 6200W 48V Solar Inverter with 120A MPPT

Pattern 6.2kVA Hybrid Inverter for Reliable Solar & Backup Power

The Pattern 6.2kVA hybrid inverter is a high-performance 6200W hybrid inverter designed to deliver reliable power for residential and small commercial solar systems. Featuring advanced MPPT technology, pure sine wave output, and intelligent battery management, this 6.2kVA solar inverter seamlessly integrates solar panels, lithium batteries, and the utility grid to maximize energy efficiency and reduce electricity costs.

With a powerful 120A MPPT solar charge controller, the Pattern 6.2kVA hybrid inverter supports up to 8,500W of PV input, ensuring maximum solar energy harvesting even in varying weather conditions. Compatible with 48V lithium and lead-acid battery systems, it provides dependable backup power during load shedding and grid outages.

Engineered for high efficiency with over 95% peak efficiency, this 48V hybrid inverter delivers stable pure sine wave output, making it ideal for powering sensitive household and office equipment. The inverter also features RS485 and RS232 communication for seamless integration with lithium battery BMS and advanced system monitoring.

Whether you're installing a new solar system or upgrading an existing one, the Pattern 6200W hybrid inverter offers a reliable, efficient, and cost-effective energy solution for homes and businesses.

Key Features

  • High-performance 6.2kVA hybrid inverter
  • Powerful 6200W hybrid inverter with pure sine wave output
  • Built-in 120A MPPT solar charge controller
  • Supports up to 8,500W PV input
  • Compatible with 48V lithium and lead-acid batteries
  • Peak efficiency greater than 95%
  • Intelligent battery charging and management
  • Seamless solar, battery, and grid integration
  • RS485 lithium battery BMS communication
  • RS232 communication for monitoring
  • Reliable backup power during load shedding
  • Ideal for residential and small commercial solar systems

Technical Specifications

Specification Details
Model Pattern 6.2kVA Hybrid Inverter
Rated Power 6200W
Peak Power 12,400VA
Input Phase Single Phase
AC Input Voltage 220/230/240VAC
Input Voltage Range 90–280VAC (Normal) / 170–280VAC (UPS)
Frequency 50/60Hz
Output Waveform Pure Sine Wave
Battery Voltage 48VDC
PV Charging Method MPPT
Maximum PV Input Power 8,500W
MPPT Voltage Range 60–500VDC
Maximum PV Voltage 500VDC
Maximum PV Charge Current 120A
Maximum AC Charge Current 100A
Maximum Total Charge Current 120A
Output Current 26.9A
Grid Voltage Range 170–265VAC
Grid Frequency 49–51Hz / 59–61Hz
Communication RS485, RS232
Operating Temperature -10°C to +50°C
Peak Efficiency >95%

Applications

  • Residential solar power systems
  • Small business solar installations
  • Backup power during load shedding
  • Off-grid and hybrid energy systems
  • Lithium battery energy storage
  • Home and office power backup

Warranty

The Pattern 6.2kVA hybrid inverter includes a 2-year manufacturer's warranty, providing dependable performance and peace of mind.
