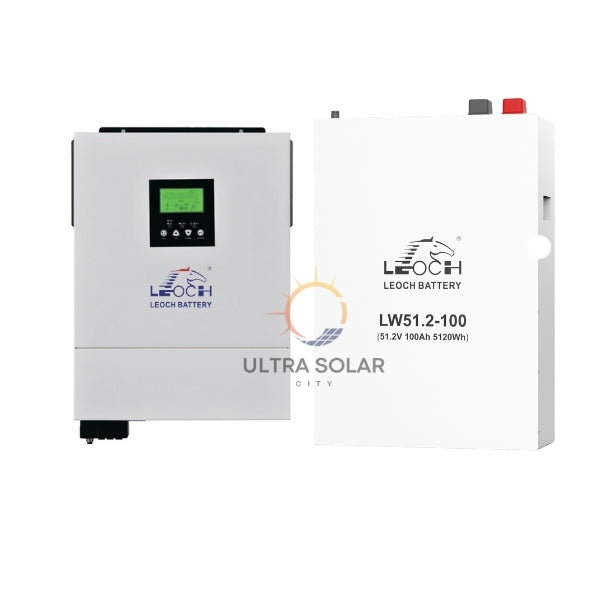

6.2kva with 5.12kwh A Grade Lithium Battery Combo-Leoch

Leoch 6.2kVA Inverter with 5.12kWh A-Grade Lithium Battery Combo is a reliable, all-in-one backup and energy storage solution designed for homes and small businesses.

It combines a powerful 6.2kVA inverter—capable of handling essential appliances like lights, TVs, fridges, and even some heavier loads—with a high-quality 5.12kWh lithium battery that offers long-lasting performance, faster charging, and deeper discharge compared to traditional batteries. The “A-grade” lithium cells ensure better efficiency, durability, and safety.

This combo is ideal for managing load shedding, reducing reliance on the grid, and supporting solar integration if needed. It provides stable power, low maintenance, and a longer lifespan, making it a cost-effective energy solution over time.

Features
- Dual output for smart load management
- Lithium battery activation function by PV or Utility - Compatible work with LiFePO4 battery via RS485 - PV Input 500 Vdc Max
- Built-in MPPT 100A
- Capable to work without battery
- Detachable dust cover for harsh environment
- Wifi remote monitoring optional
- Support multiple output priority: UTL, SOL, SBU, SUB - EQ function to optimize battery performance and extend lifecycle

Specifications :

Model : LW51.2-100
Nominal Voltage : 51.2 V
Rated Capacity  : 100 Ah
Energy : 5.12 kWh
Discharge Ending Voltage : 43.2 V
Charging Limited Voltage : 58.4 V
Max. Charge/Discharge Current : 100 A
Weight Approx. 48 Kg
Dimensions (W*D*H) mm (inches) : 400 *560 *150 mm
Protocol : RS485/RS232/CAN
Max number of parallel connections : 15
Design life : More than 15 years
Cycle Life : More than 6000 cycles @ 80% DOD
IP Class : IP30
Case Material : SPCC
Operating Temperature Charging : 0 to +45℃ Discharging: -10 to +55℃ Storage: -20 to +60℃
