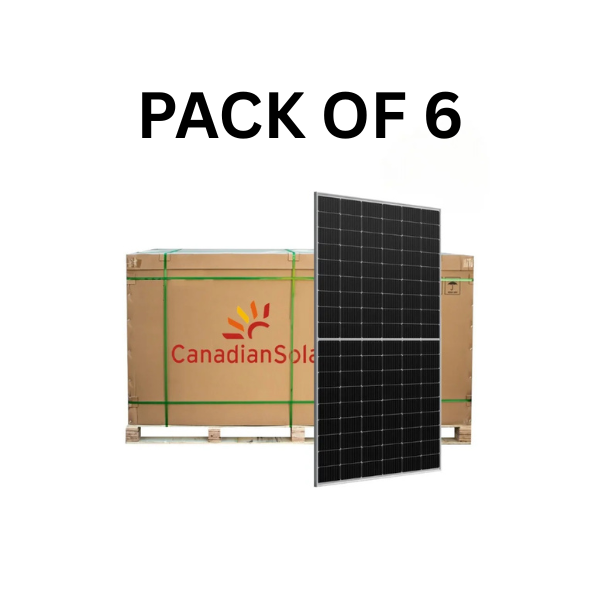

Canadian Solar Panel 545W CS3W-545MS

NOTE: This is a 6X Panel Listing, and the Shipment is according to 6x Panel Weight and Dimension. Multiple-panel orders in this listing will not be shipped. For Multiple Quantity, please check our Combo Listing with discounted prices or contact us directly for a Quote

COURIER PANEL AT YOUR OWN RISK

Power up your solar system with the Canadian Solar Panel 545W CS3W-545MS, engineered for high-efficiency performance and durability. This 545W solar panel delivers industry-leading energy yields, backed by innovative HiKu6 mono PERC cell technology. Ideal for residential, commercial, and utility-scale applications, it combines cutting-edge reliability with cost-saving design, making it one of the most efficient modules in its class.

Key Features & Benefits

• Delivers up to 545W of power output with module efficiency up to 21.3%
• Advanced LID / LeTID mitigation technology reduces degradation by up to 50%
• Superior shade tolerance and minimized micro-crack impacts for consistent performance
• Designed to withstand heavy snow (5400 Pa) and wind loads (2400 Pa)
• Up to 4.5% lower Levelized Cost of Energy (LCOE) and 5.6% lower system cost
• Compatible with mainstream tracking systems, perfect for large-scale deployments

How It Works

The CS3W-545MS panel utilizes Canadian Solar’s HiKu6 Mono PERC technology, enabling it to capture and convert sunlight with remarkable efficiency—even under low-light or shaded conditions. Its robust build and certified quality ensure long-term durability and performance. With better temperature coefficients and a reinforced frame, this panel optimizes energy production across a wide range of climates and site conditions.

Technical Specifications

This model features a module size of 2261 x 1134 x 35 mm, weighing 28.4 kg. It supports a maximum system voltage of 1500 V (IEC/UL) and offers excellent thermal and mechanical resistance.

Nominal Max. Power (Pmax) 545 W
Opt. Operating Voltage (Vmp) 41.5 V
Opt. Operating Current (Imp) 13.14 A
Open Circuit Voltage (Voc)  49.4 V
Short Circuit Current (Isc) 13.95 A

Usage Suggestions & Additional Benefits

Perfect for grid-tied systems, solar farms, or commercial rooftops, this panel is a smart choice for lowering energy costs and boosting sustainability. Whether you’re expanding a solar project or starting from scratch, its high efficiency and low maintenance make it a reliable, eco-conscious investment.
