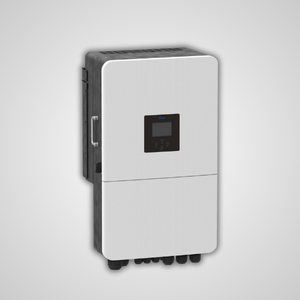

Deye 20Kw Three Phase Hybrid Inverter 48v Lv

Deye 20kw Battery Input Data

• Battery Type: Lead-acid or Lithium-ion
• Battery Voltage Range(V): 40~60V
• Max. Charging Current (A): 350
• Max. Discharging Current (A): 350
• Number of battery input: 1
• Charging Curve: 3 Stages / Equalization
• Charging Strategy for Li-Ion Battery: Self-adaption to BMS

Deye 20kw PV String Input Data

• Max. DC Input Power (W): 26000W
• Max. DC Input Voltage (V): 1000
• Start-up Voltage (V): 180
• MPPT Range (V): 160V-650V
• PV Input Current (A): 26A+26A
• Max. PV ISC (A): 39A+39A
• Number of MPPT / Strings per MPPT: 2/2

Deye 20kw AC Output Data

• Rated AC Output and UPS Power (W): 20000W
• Max. AC Output Power (W): 22000W
• Peak Power (off grid): 1.5 times of rated power, 10 S
• AC Output Rated Current (A): 30.3
• Max. AC Current (A): 35
• Max. Continuous AC Passthrough (A): 80A
• Output Frequency and Voltage: 50/60Hz;3L/N/PE 220/380Vac，230/400Vac
• Grid Type: Three Phase
• DC injection current (mA): <0.5%1n

Deye 20kw Efficiency

• Max. Efficiency: 97.60%
• Euro Efficiency: 97.00%
• MPPT Efficiency: 99.90%

Deye 20kw Protection

• PV Input Lightning Protection: Integrated
• Anti-islanding Protection: Integrated
• PV String Input Reverse Polarity Protection: Integrated
• Insulation Resistor Detection: Integrated
• Residual Current Monitoring Unit: Integrated
• Output Over Current Protection: Integrated
• Output Shorted Protection: Integrated
• Surge protection: Integrated
• Output Over Voltage Protection: DC Type II / AC Type II

Certifications and Standards

• Grid Regulation: CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11
• Safety EMC / Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

General Data

• Model number: SUN-20K-SG05LP3-EU-SM2
• Operating Temperature Range (℃): -40~60℃, >45℃ Derating
• Cooling: Smart cooling
• Noise (dB): <45 dB
• Communication with BMS: RS485; CAN
• Weight (kg): 26
• Size (mm): 434W×645H×245D
• Protection Degree: IP65
• Installation Style: Wall-mounted
• Warranty: 5 years

Applications

• Residential Systems: Ideal for powering large homes with three-phase electricity requirements.
• Commercial Energy Solutions: Supports energy management for businesses, reducing electricity costs and ensuring reliable power supply.
• Industrial Applications: Powers energy-intensive equipment with efficiency and flexibility.
• Backup Power Systems: Provides reliable backup power during grid outages when used with battery storage.
• Off-Grid Systems: Enables energy independence in remote locations or areas with limited grid access.

The Deye 20kw (LOW VOLTAGE) Three Phase Hybrid Inverter is undoubtedly a premium choice for those seeking a reliable, efficient, and scalable energy management system. Whether for residential, commercial, or industrial use, it seamlessly offers superior performance and advanced features, making it ideal for meeting modern energy needs.
