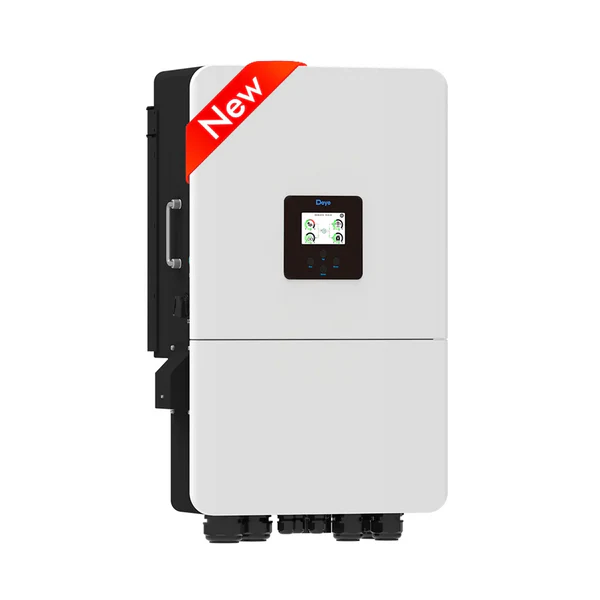

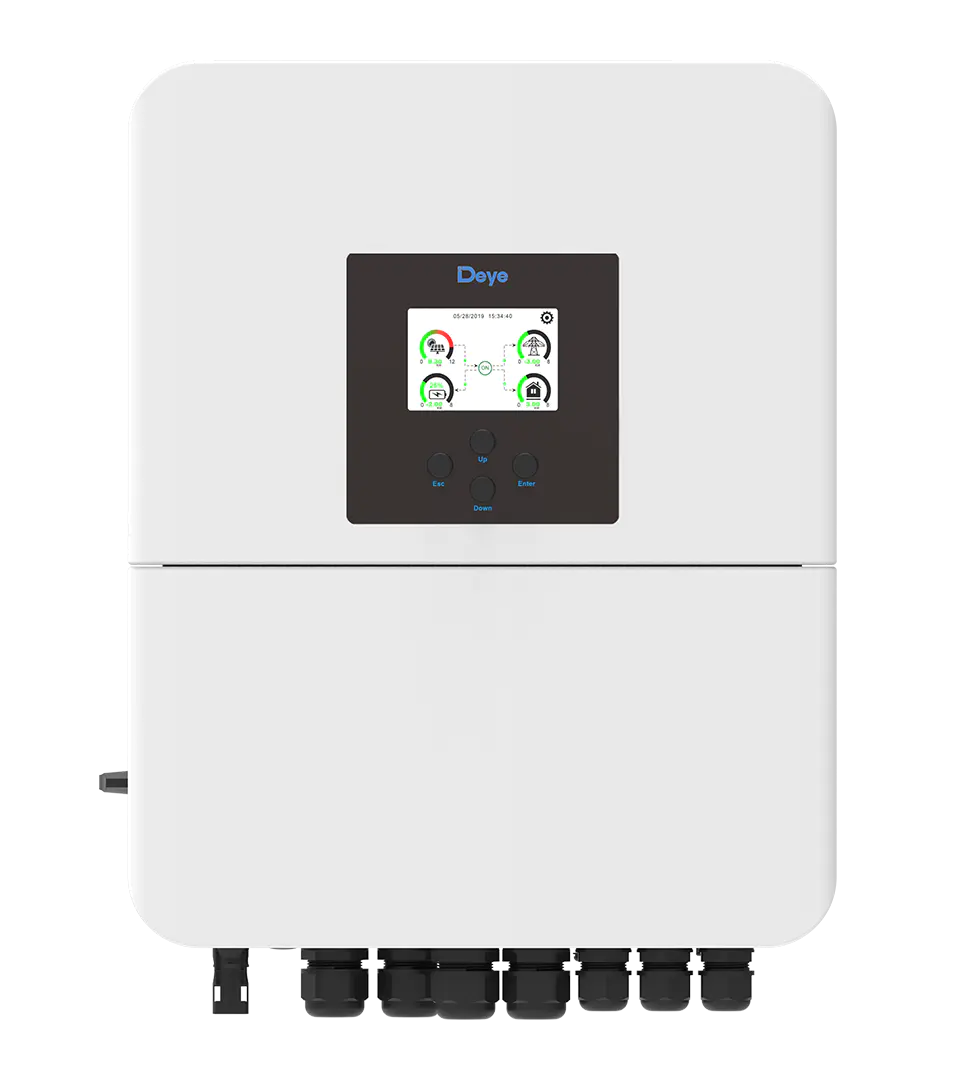

Deye 6KW Hybrid Inverter

Deye 6KW Hybrid Inverter

NEW

Includes:  Wi-Fi Dongle + BMS Communication Cable

Higher yields / Safe & Reliable / Smart / User-friendly

Smart Monitoring Platform

Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.

• Colorful touch LCD, IP65 protection degree
• AC couple to retrofifit existing solar system
• Max. 16 pcs parallel for on-grid and off-grid
  operation; Support multiple batteries parallel
• Max. charging/discharging current of 140A
• 6 time periods for battery charging/discharging
• Support storing energy from diesel generator

Battery Input Data

• Battery Type: Lead-acid or Li-lon
• Battery Voltage Range (V): 40-60V
• Max. Charging Current (A): 135A
• Max. Discharging Current (A): 134A
• Charging Strategy for Li-ion Battery: Self-adaption to BMS
• External Temperature Sensor: Optional
• Number of battery input: 1
