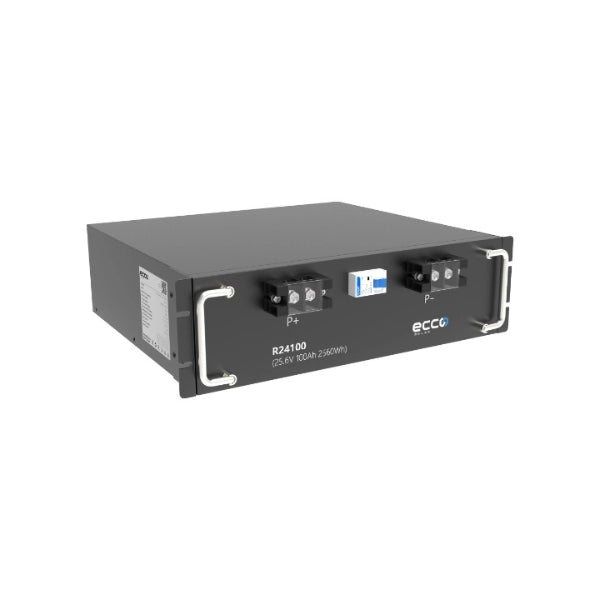

Ecco 2.56 KWh 25.6V 100AH Lithium LifePO4 Battery R24100

Ecco 2.56 KWh 25.6V 100AH Lithium LiFePO4 Battery – High-Efficiency Energy Storage Solution (R24100)

The Ecco 2.56 KWh 25.6V 100AH Lithium LiFePO4 Battery (Model R24100) is a cutting-edge energy storage solution designed for home energy storage systems and solar applications. Built with LiFePO4 technology, this lithium-ion battery offers exceptional performance, long cycle life, and reliability for a wide range of energy needs. The R24100 model is perfect for users seeking high-capacity, durable batteries for both residential energy storage and off-grid solar systems.

Equipped with a Battery Management System (BMS), the Ecco R24100 manages key battery parameters such as voltage, current, and temperature, ensuring safety and efficiency. The BMS also balances cell charging and discharging to enhance the battery's cycle life and overall lifespan. Additionally, multiple units can be connected in parallel to further expand capacity and support larger power demands.

Key Features of the Ecco 2.56 KWh LiFePO4 Battery R24100:

• Long Cycle Life: >5000 cycles at 80% Depth of Discharge (DOD), offering a lifespan of over 10 years.
• High Efficiency: 99% charge efficiency and 98% discharge efficiency for optimal energy use.
• Built-in BMS: Protects and manages the battery, balancing the charge and ensuring safe operation.
• Compact & User-Friendly Design: Easy to install with a compact, rack-mountable structure.
• Safe and Reliable: Made with LiFePO4 cells, ensuring a safe, stable, and environmentally friendly power source.
• Wide Compatibility: Works seamlessly with leading inverter brands for flexible integration into your solar or backup system.
• Maximum Parallel Connectivity: Supports up to 16 batteries in parallel to increase capacity for larger power requirements.
• Protection Rating: IP54 for dust and water resistance, suitable for various environments.
• Compliance with UL & TUV Standards: Meets global safety and quality certifications for peace of mind.

Technical Specifications:

• Nominal Voltage: 25.6V
• Nominal Capacity: 100Ah
• Total Energy: 2.56 KWh
• Operating Voltage Range: 21.6V - 28.8V
• Discharge Ending Voltage: 21.6V
• Charge Voltage Range: 28.8V (nominal), Max 29.2V
• Standard Charge/Discharge Current: 50A
• Max Charge/Discharge Current: 100A
• Max Continuous Output Power: 2560W
• Max Momentary Output Power: 3200W
• Efficiency of Charge: 99% (at 0.5C, 25°C)
• Efficiency of Discharge: 98% (at 1C)
• Protection Rating: IP54
• Cycle Life: >5000 cycles at 0.5C and 80% DOD at 25°C

Physical Dimensions & Weight:

• Dimensions (L x W x H): 442 x 400 x 133 mm
• Weight: 25.5 kg
• Material: LiFePO₄ (Lithium Iron Phosphate)
• Outer Package: Black aluminum and sheet metal case (optional battery rack or cabinet)

Warranty & Support:

• 5-Year Manufacturer Warranty: Enjoy reliable coverage with a 5-year warranty for peace of mind.
• 10-Year Service Life: Designed for long-term use with a 10-year operational life.

Warranty Terms: All inverters and batteries must be installed by a qualified electrical wireman or master electrician with valid Department of Labour registration. A Certificate of Compliance (COC) must be issued for each installation, ensuring compliance with SANS 10142 standards. Any warranty claim without installation photos, a valid COC, and proof of professional installation may be rejected.

Why Choose the Ecco 2.56 KWh LiFePO4 Battery (R24100)?

The Ecco R24100 LiFePO4 Battery is the ideal energy storage solution for those seeking a high-capacity, long-life battery for solar systems or backup power applications. With its A-grade LiFePO4 cells, this lithium-ion battery offers superior safety, efficiency, and reliability. Whether you're looking to power your home, business, or off-grid system, the Ecco R24100 provides stable, efficient energy for years to come.
