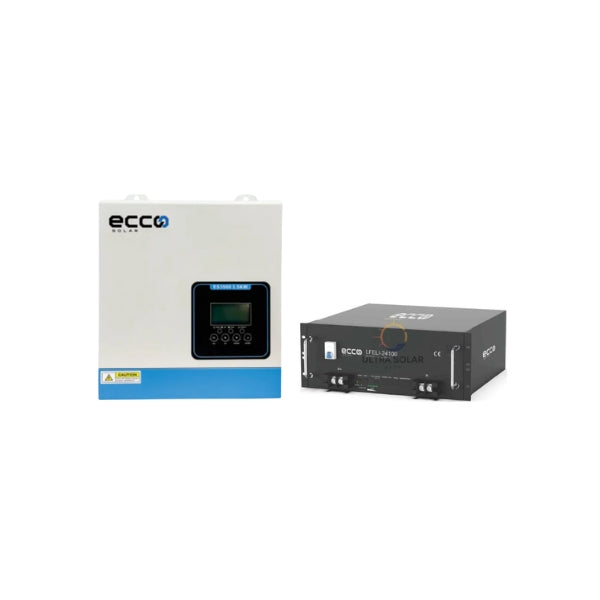

Ecco 3.5 KVA 3500 WATT MPPT 100A Ecco Solar 25.6V 100ah 2.5kwh Lithium Battery Combo

Ecco 3.5 KVA 3500 WATT MPPT 100A Svolt 106 AH 2.71 Lithium Combo Kit

ECCO Inverter Features:

Model Name : ES3500

Inverter Mode :
Rated Power : 3500VA/3500W
Nominal Voltage : 24V

Ac Charger Mode :
AC Input : 230VAC 50/60HZ
MAX Charge Current : 60A
Max Charger Current AC+PV : 100A
AC Ouptut : 230VAC

Solar Charger Mode:
Max PV Array Power: 4000W
Min Solar Voltage : 30VDC
Max Solar Voltage (VOC) : 500VDC
Max MPPT Charge Current : 100A

Ecco 25.6V 100Ah 2.5kWh Lithium Battery with BMS – LR24100

Power your home, office, or solar system with the Ecco 25.6V 100Ah 2.5kWh Lithium Battery. Designed with advanced Battery Management System (BMS), this energy storage solution ensures maximum efficiency, long lifespan, and reliable performance. Perfect for solar installations, backup power, and off-grid applications, it delivers safe and stable energy with superior cycle life compared to traditional batteries.

✅ High-performance LiFePO4 technology for safety & durability
✅ Built-in BMS for overcharge, over-discharge & short-circuit protection
✅ Compact, lightweight, and energy-efficient design
✅ Ideal for solar energy storage, inverters, UPS & backup power systems

Technical Specifications:

• Nominal Voltage: 25.6V
• Nominal Capacity: 100Ah
• Total Energy: 2.56 KWh
• Operating Voltage Range: 21.6V - 28.8V
• Discharge Ending Voltage: 21.6V
• Charge Voltage Range: 28.8V (nominal), Max 29.2V
• Standard Charge/Discharge Current: 50A
• Max Charge/Discharge Current: 100A
• Max Continuous Output Power: 2560W
• Max Momentary Output Power: 3200W
• Efficiency of Charge: 99% (at 0.5C, 25°C)
• Efficiency of Discharge: 98% (at 1C)
• Protection Rating: IP54
• Cycle Life: >5000 cycles at 0.5C and 80% DOD at 25°C
