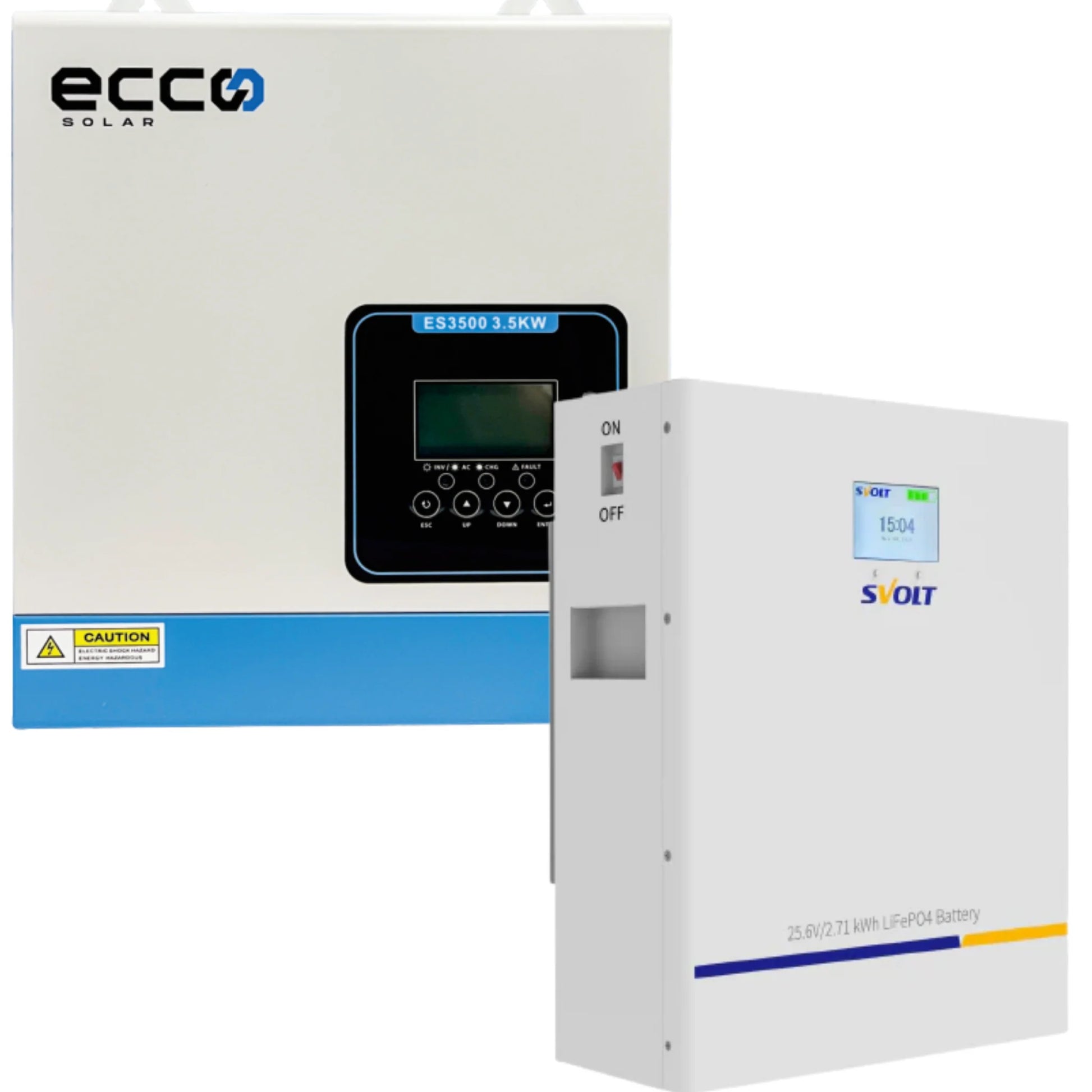

Ecco 3.5 KVA 3500 WATT MPPT 100A Svolt 106 AH 2.71 Lithium Combo

Ecco 3.5 KVA 3500 WATT MPPT 100A Svolt 106 AH 2.71 Lithium Combo Kit

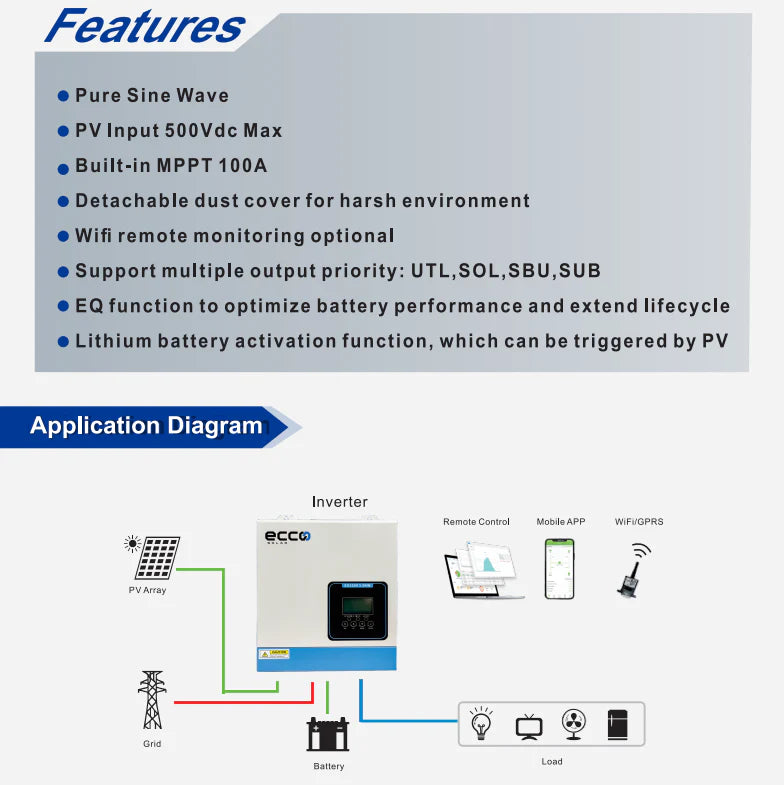

ECCO Inverter Features:

Model Name : ES3500

Inverter Mode :
Rated Power : 3500VA/3500W
Nominal Voltage : 24V

Ac Charger Mode :
AC Input : 230VAC 50/60HZ
MAX Charge Current : 60A
Max Charger Current AC+PV : 100A
AC Ouptut : 230VAC

Solar Charger Mode:
Max PV Array Power: 4000W
Min Solar Voltage : 30VDC
Max Solar Voltage (VOC) : 500VDC
Max MPPT Charge Current : 100A

SVOLT 25.6V 106Ah A-Grade Lithium Battery Specificaiton:

is manufactured by a world-leading manufacturer SVOLT using A-Grade Battery cells. This allows superior performance, capacity, and reliability. Using state of high power A-Grade cell technology, the Lithium Battery is designed for environmentally sensitive areas and is committed to recycling.

Features:
- A-Grade Cell Technology
- Maintenance-free
- Environmental Friendly
- Wide Variety of Markets
- Renewable Energy
- 7 Protection Features
- Built-in Battery Management System
- Mountable
- 5-year Warranty

Battery Specifications:

Energy: 2.71 kWh
Installation Type: Wall Mounted
Battery Type-Chemistry: Lifepo4
Nominal Voltage: 25.6V
Nominal Capacity: 106Ah
Energy Density: 2713.6 Wh
Dimensions (LxWxH): 419 x 350 x 154 mm
Weight (Approx.): 25.4 Kgs
Terminal Type: Feed-through Terminal
Case Material: SPCC
BMS Built-in: Yes
Internal Resistance: <25 mΩ
Efficiency- Round Trip: >99%
Self Discharge Per Month: <3%
Max. Parallel Connection: 4 Pcs
Max. Series Connection: 2 Pcs
Cycle Life (0.3c, 25℃ @ 90% DOD): >6000 Cycles
Discharge Temperature: (-20 to 65)°C
Charge Temperature: (0 to 50)°C
Storage Temperature: (-10 to 30)°C
Bluetooth (App): Optional
LCD Screen: Yes
Heating Function: Optional

What's in the box
1 x SVOLT 25.6V 106Ah Lithium Battery
1 x Red (Positive) Battery Cable
1 x Black (Negative) Battery Cable
1 x Ethernet cable
1 x Manual

Series connections
Cycle life (0.2C, 25°C@80% DOD) >6000 Cycles
Max continuous charge current 100A
Recommend Discharge voltage 22.4±0.20V
Max Discharging Voltage 21.6±0.20V
Max Continuous Discharge current 100A
Peak Discharge Current 150A
