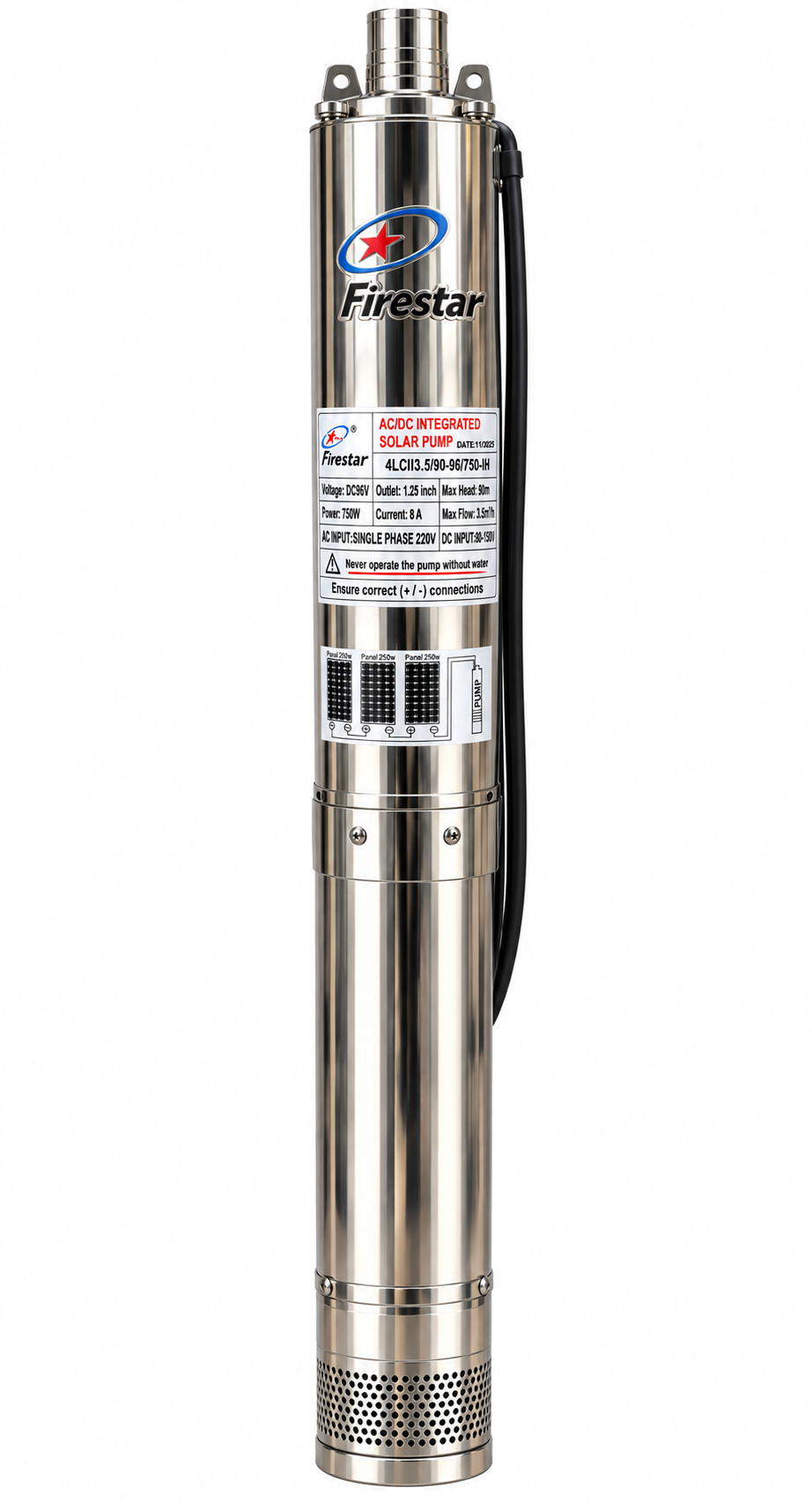

2200W AC/DC Solar Water Pump 2 Inch | 130m Head | 10,000L/H

Fivestar 2200W AC/DC Solar Submersible Water Pump – High-Performance Solar Borehole Pump

The Fivestar 2200W AC/DC Solar Water Pump is a powerful, energy-efficient solar borehole pump designed for reliable water pumping in South Africa. Featuring an integrated AC/DC system, this 2.2kW solar submersible pump can operate using solar power or a compatible 220V single-phase AC electricity supply.

With a maximum pumping head of 130 metres and a maximum flow rate of 10,000 litres per hour (10m³/h), the Fivestar solar water pump is ideal for agricultural irrigation, borehole water supply, livestock watering, farm operations and residential water systems.

Built with a durable stainless-steel exterior, this high-performance solar-powered water pump offers a practical solution for farms, smallholdings and properties requiring dependable water delivery.

Key Features & Benefits

• 2200W Powerful Motor: Delivers reliable pumping performance for demanding agricultural and residential applications.
• AC/DC Integrated Technology: Supports operation using suitable solar panels or a compatible 220V AC electricity supply.
• Maximum 130m Pumping Head: Suitable for deep borehole installations, subject to flow and system requirements.
• 10,000L/H Maximum Flow Rate: Provides high-volume water pumping for irrigation, livestock and water storage applications.
• 2-Inch Water Outlet: Designed for efficient water transfer through compatible piping.
• Stainless-Steel Construction: Durable exterior designed for submerged water pumping applications.
• Solar-Powered Operation: Helps reduce reliance on grid electricity when connected to a correctly sized solar array.
• Suitable for South African Conditions: Ideal for farms, boreholes, smallholdings and off-grid water supply systems.

Fivestar 2200W Solar Water Pump – Technical Specifications

The following specifications are taken directly from the product label in your image.

Important: Maximum head and maximum flow are separate performance limits. The pump will not deliver 10,000L/H at a 130m head. Actual performance depends on borehole depth, water level, pipe diameter and system resistance.

Ideal Applications for the Fivestar 2.2kW Solar Borehole Pump

Agricultural Irrigation

The Fivestar 2200W solar water pump is suitable for supplying water to agricultural irrigation systems, including vegetable farms, crop fields and smallholdings.

Borehole Water Pumping

Designed for submerged operation, this 130m head solar borehole pump can transfer groundwater to storage tanks and distribution systems.

Livestock Water Supply

Provides a practical water pumping solution for cattle farms, poultry operations and livestock watering systems.

Off-Grid Water Systems

The integrated AC/DC design allows operation from a correctly configured solar power system, making it suitable for remote properties without reliable grid electricity.

Residential Water Storage

Suitable for pumping borehole water into JoJo tanks and other water storage systems, provided the installation is correctly sized.

Solar Panel Requirements

The Fivestar 2200W AC/DC solar pump supports a DC input voltage range of 180V–430V.

Solar panels must be connected in a suitable configuration to meet the pump's operating voltage and power requirements.

The number of panels required depends on the individual panel specifications, including operating voltage, open-circuit voltage and wattage.

Note: The solar panel configuration shown on the product label is illustrative. The correct array size and wiring arrangement must be confirmed before installation.

Installation & Safety Information

• Never operate the pump without water.
• Ensure correct positive (+) and negative (−) DC connections.
• Use appropriately rated solar panels and electrical protection.
• Ensure the borehole diameter is suitable for the pump.
• Professional installation is recommended.

Why Choose the Fivestar 2200W Solar Water Pump?

The Fivestar 2.2kW Solar Borehole Pump combines high pumping capacity, AC/DC flexibility and durable stainless-steel construction.

Whether you need a solar water pump for farming, a deep borehole pump, an irrigation water pump or an off-grid water pumping solution, the Fivestar 2200W offers dependable performance when installed in a properly designed system.

Order your Fivestar 2200W AC/DC Solar Water Pump today and enjoy efficient, solar-powered water pumping in South Africa.
