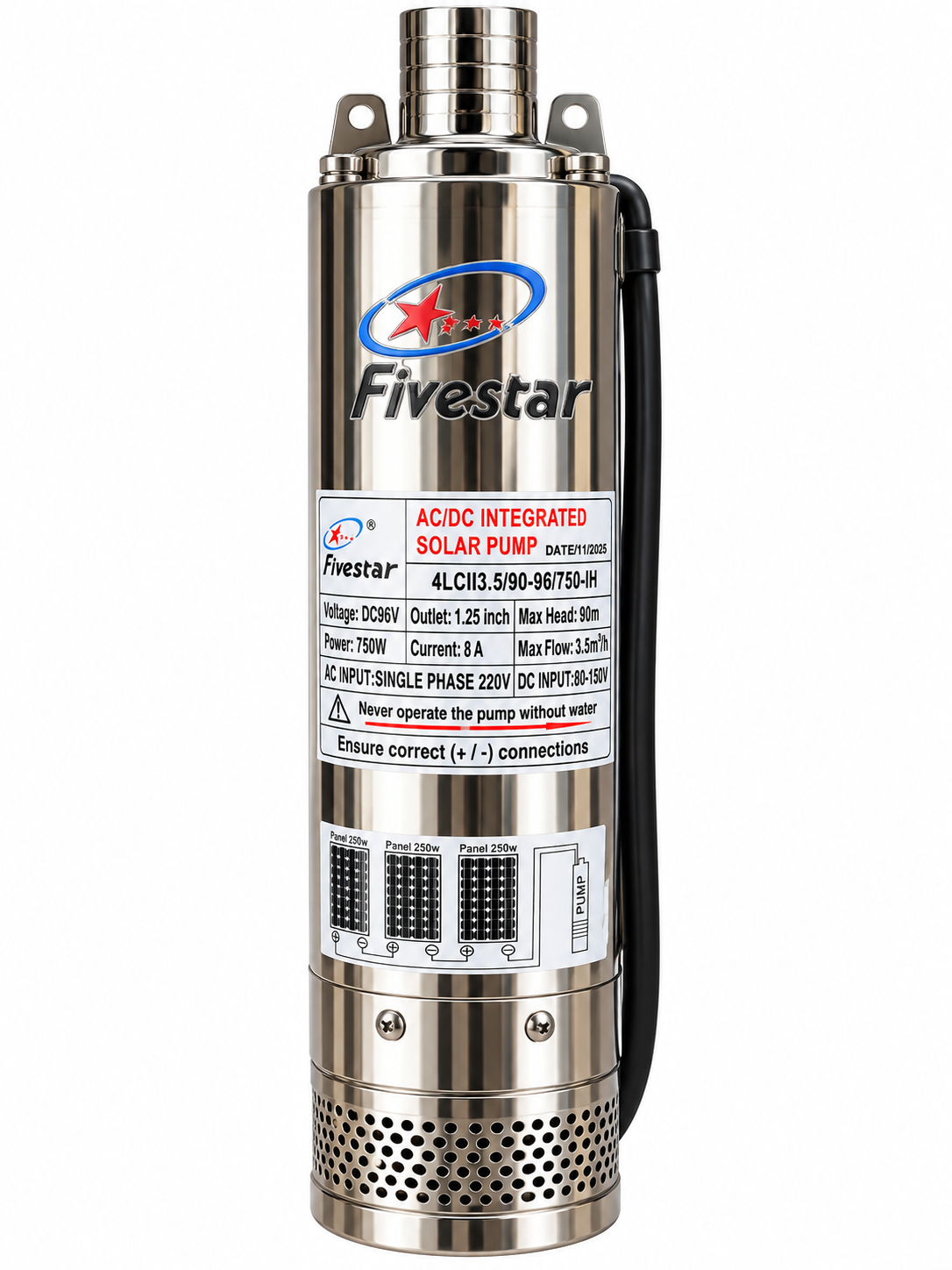

Fivestar 750W AC/DC Solar Borehole Water Pump – 90m Head, 1.25 Inch

Fivestar 750W AC/DC Solar Submersible Borehole Pump – Efficient Solar Water Pump for Farms & Homes

The Fivestar 750W AC/DC Integrated Solar Borehole Pump is a reliable, energy-efficient solar water pump designed for borehole water supply, agricultural irrigation, livestock watering and off-grid water pumping applications in South Africa.

Featuring AC/DC integrated technology, this 750W solar submersible pump can operate using a compatible solar panel system or a 220V single-phase AC electricity supply, providing flexibility for properties with or without reliable grid electricity.

With a maximum pumping head of 90 metres and a maximum water flow rate of 3,500 litres per hour (3.5m³/h), the Fivestar solar borehole pump is ideal for residential boreholes, farms, smallholdings and water storage systems.

Its durable stainless-steel exterior and efficient 750W motor make it a practical solution for customers looking to reduce electricity costs while maintaining a dependable water supply.

Key Features & Benefits

• 750W Energy-Efficient Motor: Designed for reliable water pumping with relatively low power consumption.
• AC/DC Integrated Technology: Supports operation using solar DC power or compatible 220V single-phase AC electricity.
• 90m Maximum Pumping Head: Suitable for borehole installations requiring significant water lifting capability.
• 3,500L/H Maximum Flow Rate: Delivers up to 3.5m³ of water per hour under suitable operating conditions.
• 1.25-Inch Water Outlet: Compatible with appropriately sized borehole piping systems.
• 96V DC Rated Voltage: Designed for solar-powered water pumping applications.
• 80V–150V DC Input Range: Supports correctly configured solar panel arrays.
• Stainless-Steel Exterior: Durable construction suitable for submerged operation.
• Solar-Powered Operation: Helps reduce reliance on conventional grid electricity.
• Versatile Applications: Ideal for farms, smallholdings, residential boreholes and agricultural water supply.

Fivestar 750W Solar Borehole Pump – Technical Specifications

The following specifications are taken directly from the product label.

Important: The maximum pumping head of 90m and maximum flow rate of 3,500L/H are separate performance limits. Actual flow depends on pumping depth, water level, pipe friction and system design.

AC/DC Integrated Solar Pump Technology

The Fivestar 750W Solar Borehole Pump features integrated AC/DC technology, allowing it to operate using two different electricity sources.

Solar DC Power

The pump can operate using solar panels connected in a suitable configuration to meet its DC voltage and power requirements.

Benefits of Solar Operation:

• Reduces reliance on grid electricity.
• Suitable for off-grid farms and smallholdings.
• Helps lower electricity expenses.
• Provides an environmentally friendly water pumping solution.
• Ideal for daytime borehole pumping and water storage applications.

220V AC Electricity

The pump also supports a compatible 220V single-phase AC power supply, allowing operation when solar energy is insufficient or unavailable.

This makes the Fivestar 750W AC/DC pump suitable for properties requiring flexible water pumping options.

Automatic switching between AC and DC power sources has not been verified.

Ideal Applications for the Fivestar 750W Solar Water Pump

Residential Borehole Water Supply

The Fivestar 750W solar borehole pump is suitable for pumping groundwater into residential water storage tanks, including JoJo tanks and other compatible storage systems.

Agricultural Irrigation

An efficient solution for small-scale agricultural water pumping, including:

• Vegetable gardens
• Small farms
• Crop irrigation
• Smallholdings
• Agricultural water storage

Livestock Water Supply

Suitable for supplying water to livestock drinking systems and agricultural storage tanks.

Off-Grid Water Pumping

Ideal for remote properties where grid electricity is limited or unreliable.

Water Storage Tank Filling

Can be used to transfer borehole water into elevated or ground-level storage tanks, provided the total pumping head remains within the pump's operating capability.

Solar Panel Requirements

The Fivestar 750W AC/DC solar borehole pump has the following electrical requirements:

The product label illustrates a solar panel connection diagram featuring 250W solar panels.

The exact number and configuration of solar panels must be determined according to their operating voltage, open-circuit voltage and power output.

For reliable performance, the solar array should be appropriately sized for the pump's electrical requirements.

Installation Note: Ensure the solar panel configuration does not exceed the maximum permitted DC input voltage of 150V.

Installation & Safety Guidelines

To ensure safe and reliable operation:

1. Never operate the pump without water.
2. Ensure correct positive (+) and negative (−) DC connections.
3. Use compatible solar panels and appropriately rated electrical protection.
4. Ensure the borehole diameter is suitable for the pump.
5. Use appropriate piping and electrical cabling.
6. Install the pump according to the manufacturer's instructions.
7. Professional installation is recommended.

Why Choose the Fivestar 750W AC/DC Solar Borehole Pump?

The Fivestar 750W Solar Water Pump offers a combination of energy efficiency, flexible AC/DC operation and dependable borehole water pumping performance.

With a 90m maximum pumping head, 3,500L/H maximum flow rate and 220V AC/DC integrated design, this solar submersible pump is a practical choice for residential, agricultural and off-grid water supply applications.

Whether you need a solar borehole pump for your home, a solar water pump for farming or an energy-efficient submersible pump for irrigation, the Fivestar 750W provides a versatile water pumping solution.

Order the Fivestar 750W AC/DC Integrated Solar Borehole Pump from Lekker Volt and enjoy efficient solar-powered water pumping in South Africa.
