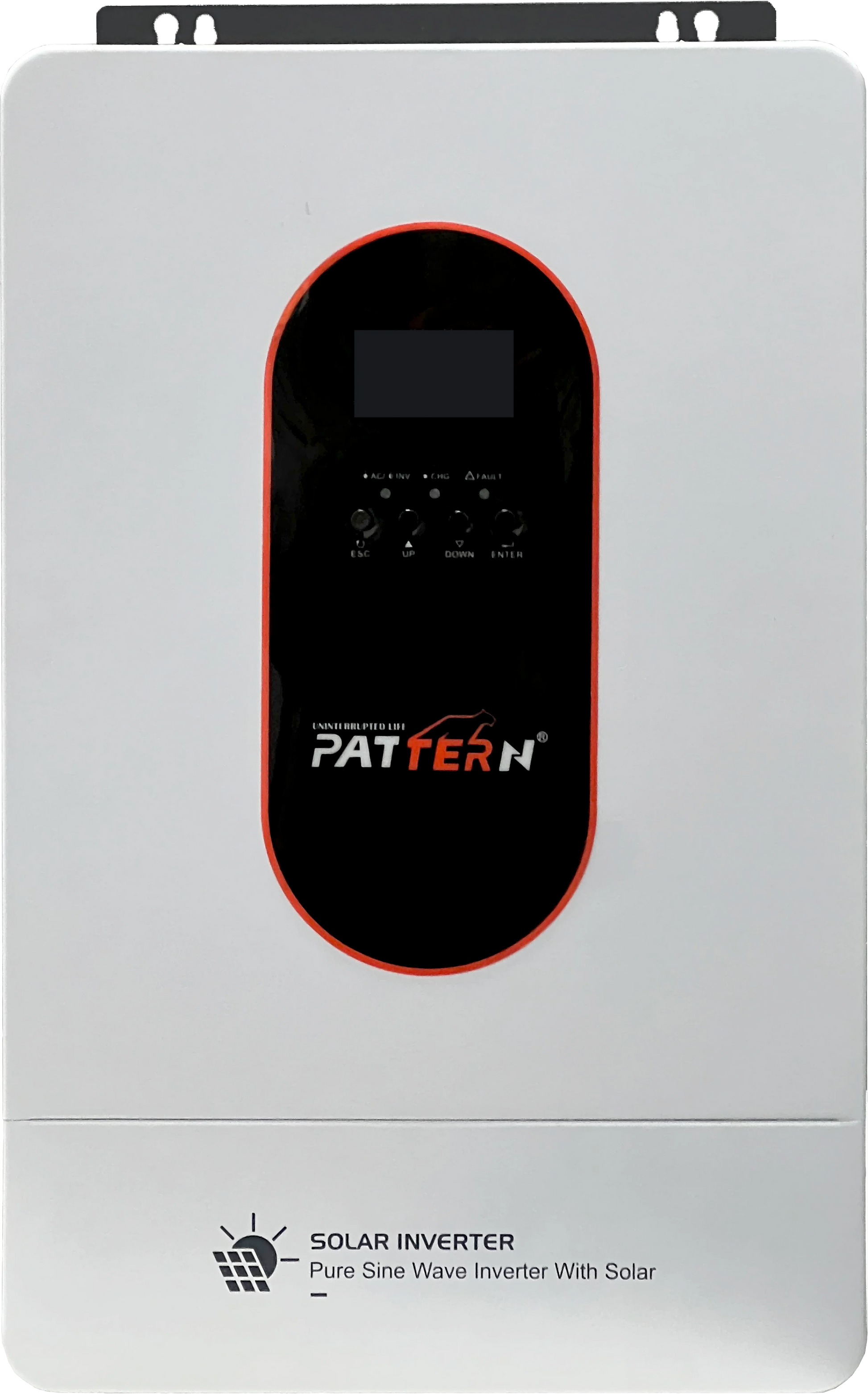

The Pattern 11kVA Dual MPPT Hybrid Inverter is a powerful and efficient energy solution designed for residential, commercial, and backup power applications. With advanced Dual MPPT technology, it maximizes solar energy harvesting by optimizing power generation from multiple solar panel arrays. This hybrid inverter seamlessly combines solar, grid, and battery power to provide reliable, uninterrupted electricity while reducing energy costs.

Built with a pure sine wave output, the Pattern 11kVA inverter safely powers sensitive appliances, including air conditioners, refrigerators, computers, TVs, pumps, and office equipment. Its intelligent battery management system extends battery life, while the user-friendly LCD display allows real-time monitoring of system performance, battery status, solar production, and power consumption.

Whether you are installing a new solar system or upgrading an existing one, the Pattern 11kVA Dual MPPT Hybrid Inverter offers exceptional efficiency, stable performance, and dependable backup power. It is an ideal choice for homes, businesses, farms, and off-grid or hybrid solar installations.

Key Features:

1. 11kVA high-capacity hybrid inverter
2. Advanced Dual MPPT solar charge controller
3. Pure sine wave output for sensitive electronics
4. Supports solar, battery, and utility grid operation
5. Intelligent battery charging and protection
6. High solar energy conversion efficiency
7. LCD display with real-time monitoring
8. Multiple built-in safety protections

MODEL: 11kW hybrid solar inverter with dual MPPT charger

Input Formation:     Single Phase
AC INPUT:            220/230/240VAC
INPUT VOLTAGE RANGE: 90-280VAC±3V(Normal Mode) 170-280VAC±3V (UPS Mode)
Frequency:           50/60hz±0.1%
Output wave:         Pure Shine wave
Peak Power:          11000W
Rated Voltage:       48V
Peak Efficiency:     ＞95%
Peak Power:          22000VA
Overload Ability:Battery Mode: 11s@105%~150% Load; 2s@150%~200% Load; 400ms@>200% Load
Grid Voltage Range:  170-265VAC
Grid Frequency Range:49-51±1Hz/59-61±1Hz
Output Current:      37.4A/ 47.8A
Battery Rated Voltage: 48VDC
PV Charging Method: MPPT
PV input & Charging
Max Pv Input:          2*5500W
MPPT Tracking Range:   90-500VDC
Max Pv input Voltage:  500VDC
Max Pv charge current: 150A
Max Ac Charge Current: 120A
Max Charge Current:    150A

Communication & Display
LCD: Can display operating mode/load/input/output
Communicate：RS485 with Lithium Battery BMS Communication
RS232

Operating Temperature: -10°to +50°

Warranty period: 2 Years
