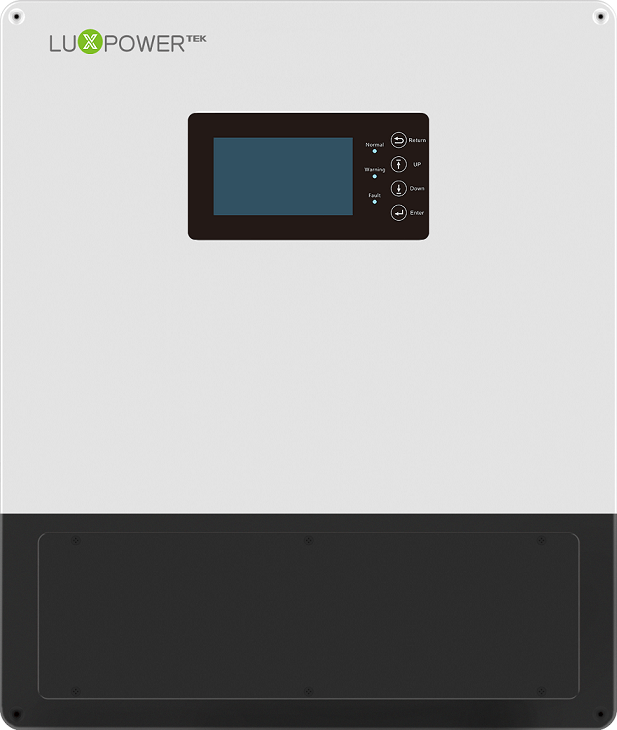

Lux Power Inverter 10KW Hybrid LV Single Phase (LXP10K)

Detailed Features

• 10KW High Power Output
  • The LXP10K delivers a 10,000W output, making it ideal for powering large household loads or small businesses.
  • Supports both on-grid and off-grid operation.
• Hybrid Functionality
  • Smart energy management enables the inverter to balance power from solar panels, battery storage, and the grid.
  • Works with lead-acid and lithium-ion batteries, providing flexibility in energy storage solutions.
• Low Voltage (LV) Battery Compatibility
  • Compatible with low-voltage battery banks (40V – 60V DC) for improved safety and cost efficiency.
  • Seamless Grid Integration
  • Capable of feeding excess solar energy back into the grid (Net Metering Ready).
  • Offers zero-export functionality, allowing users to prevent power from being fed back to the grid when required.
• Smart Monitoring & Control
  • Built-in Wi-Fi and app-based monitoring for real-time system performance tracking.
  • RS485, CAN, and DRM communication protocols for advanced system integration.
  • Remote access and firmware updates via LuxPower monitoring platform.
• Parallel Operation for Scalability
  • It also supports parallel connection of up to 10 units, thereby allowing users to expand their system as their energy demands grow.
  • Ideal for larger residential projects and small commercial setups.
• Reliable Backup Power (UPS Functionality)
  • Provides seamless switchover during grid failures, ensuring uninterrupted power supply.
  • Fast switching time (<10ms) for critical appliances.
• High Efficiency & Performance
  • Up to 97.6% efficiency, ensuring maximum energy conversion from solar panels.
  • MPPT (Maximum Power Point Tracking) technology optimizes solar energy harvest.
• Rugged & Durable Design
  • Built with IP65-rated protection, making it suitable for both indoor and outdoor installations.
  • Long lifespan with high-quality components.

Technical Specifications

• Model: LXP10K
• Output Power: 10KW
• Battery Voltage Range: 40V – 60V
• Max PV Input Power: 13KW
• MPPT Efficiency: 97.6%
• Battery Type Compatibility: Lead-Acid & Lithium-ion
• Parallel Operation: Up to 10 units
• Grid Connection: Single Phase
• Backup Switching Time: <10ms
• Communication Interfaces: RS485, CAN, DRM
• Monitoring: Wi-Fi, App, Web Portal
• IP Rating: IP65 (Outdoor/Indoor)

Applications of the Lux Power Inverter 10KW Hybrid LV Single Phase (LXP10K)

• Residential solar systems
• Farms and rural properties
• Small businesses and offices
• Off-grid and backup power solutions
