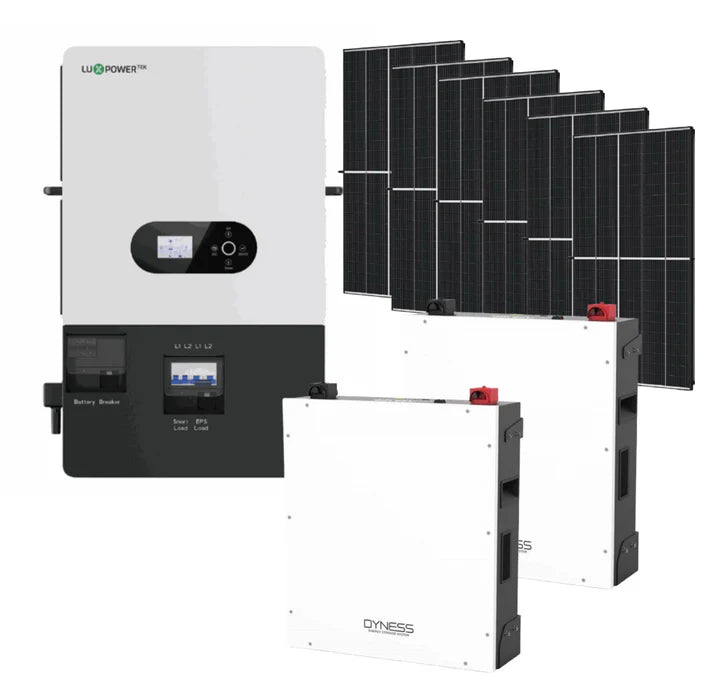

LuxPower 12kW (SNA12000) Plus 2X Dyness 5.12kwh Batteries & 8 X 595W Mono Solar Panel

LuxPower 12kW (SNA12000) Plus 2X Dyness BX51100 5.12kwh Batteries & 6 X 585W Mono Solar Panel

LuxPower 12kW (SNA12000) Single Phase Hybrid Inverter

• Max. PV array power (W): 24000 (12000/12000)
• Rated PV input voltage (V): 320
• Number of independent MPPT inputs: 2/(2:2)
• PV input voltage range (V): 100-480
• MPPT voltage range (V): 120-385
• Start-up voltage (V):100
• Max. PV input current per MPPT (A): 35/35
• Max. PV short-circuit current input per MPPT (A): 44/44
• Compatible battery type: Lithium-ion/Lead-Acid
• Rated battery voltage (V): 48/51.2

• Max. charging / discharging current (A): 250
• Max. charging / discharging power (W):12000
• Force wake up battery from PV and Grid function: Yes
• Dimensions ( W*H*D mm ): 530*830*150mm
• Weight: 40kg
• Warranty: 2Years

Dyness Lithium Battery (51.2V100AH 5.12 KWH)

The BX51100 is more than just a robust energy storage solution; it’s a testament to reliability. Its advanced BMS ensures the safety and longevity of the battery, and with 5.12kWh of capacity, it provides you with the perfect power backup. Whether it’s for residential or commercial use, the Dyness solar battery BX51100 is the key to uninterrupted, sustainable energy.

• Capacity: 5.12kWh
• Battery Type: Lithium-ion
• Continuous Output Power
• Battery Management System (BMS): Yes
• Protection Features: Overcharging, Over-discharging, Short Circuit Protection
• Cycle Life: Ensuring a long-lasting energy solution

585w Panel

Dimensions: 2278 x 1134 x 30 27.2kg

Super Warranty

• 15 Year product warranty
• 30 Year linear output power warranty
• 0.40% annual degradation

 Combo includes:

• 2x Dyness Lithium Battery (51.2V100AH 5.12 KWH) (10-year warranty)
• 1x LuxPower 12kW (SNA12000) Single Phase Hybrid Inverter (2 year warranty)
• 8x 580w Tier 1 Mono Solar Panel
• Battery Cables And Brackets Included

• (Courier for panels are at your own risk)
