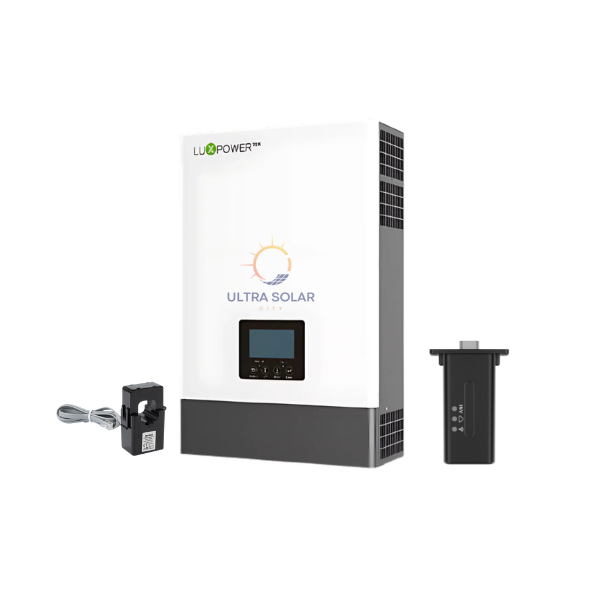

Luxpower Solar Inverter SNA6000 Offgrid WPV(with CT) 6000w 48v+ Wifi Dongle

Luxpower Off-Grid Pure Sine Wave Inverter (SNA6000) – 6KW / 6000W / 48V / MPPT

The Luxpower SNA6000 is a powerful and versatile off-grid pure sine wave inverter designed for reliable energy independence. With dual MPPT controllers, advanced battery compatibility, and remote monitoring features, it's perfect for residential and commercial solar applications.

     General Specifications

1. Model: SNA 6000 WPV
2. Battery Voltage: 48VDC
3. Rated Power: 6000W
4. Surge Power: 9000W
5. Waveform: Pure Sine Wave
6. Efficiency (Peak): 93%
7. Parallel Support: Yes, up to 16 units
8. AC Output Voltage Regulation (Battery Mode): 230VAC ± 5% @ 50/60Hz
9. Transfer Time:

• • 10ms (Personal Computers)

  • 20ms (Home Appliances)

     Solar Charger

1. Max PV Array Power: 8000W (4000W per MPPT)
2. Number of MPPTs: 2
3. MPPT Voltage Range: 120VDC ~ 385VDC
4. Max PV Open Circuit Voltage: 480VDC
5. Startup Voltage: 100VDC
6. Max Solar Charge Current: 17A / 17A
7. MPPT Efficiency: 98%

     AC Charger

1. AC Input Voltage: 230VAC
2. Charge Current: 80A
3. Selectable Voltage Range:
4. 110–280VAC (for Personal Computers)
5. 90–280VAC (for Home Appliances)
6. Frequency Range: 50Hz/60Hz (Auto Sensing)

     Battery Management System (BMS) Compatibility

The SNA6000 comes with built-in BMS communication and is fully compatible with the following lithium battery brands:

• PylonTech
• Dyness
• Shoto
• REVOV
• UZ Energy
• Volta
• Lithium Battery South Africa
• Hina (Approved)
• Lemoen
• Freedom Won
• Greenrich
• Bluenova
• Hubble

     Smart Features

1. Built-in WiFi for remote monitoring and system management
2. Flexible Working Modes – Set charge and load power priority
3. Load Sharing – Supports joint load handling from solar and AC
4. CT Clamp Included – Manage essential vs. non-essential loads (acts like a full hybrid inverter)

     Package Dimensions

• Size: 65cm x 44cm x 23.5cm

     Warranty & Installation Requirements

1. Warranty: 2 Years
2. All inverters must be installed by a qualified electrical wireman or Master Electrician registered with the Department of Labour.
3. A valid Electrical Certificate of Compliance (COC) must be issued specific to the solar or backup system.
4. Installation must comply with SANS 10142 regulations.
5. Warranty claims require photos of the installation, a valid COC, and proof of qualified installation. Claims without these may be rejected.

     Perfect for:

• Off-grid solar installations
• Backup power systems
• Hybrid-ready systems with load control
• Residential and small commercial properties
