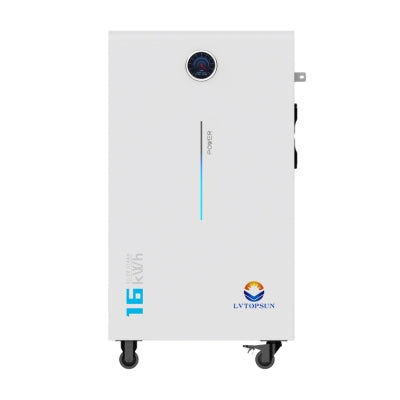

LVTOPSUN 51.2V 314Ah 16.07kWh Lithium Solar Battery - LVTS-512314-G4

LVTOPSUN LVTS-512314-G4 51.2V 314Ah 16.07kWh LiFePO4 Lithium Solar Battery

Looking for a high-capacity lithium solar battery for your home or business? The LVTOPSUN LVTS-512314-G4 16.07kWh Lithium Battery is an advanced residential and commercial energy storage solution designed for solar power systems, backup electricity and off-grid applications.

With a nominal voltage of 51.2V, a capacity of 314Ah and an impressive 16.07kWh of stored energy, this LVTOPSUN lithium battery is designed to support demanding energy storage requirements. It uses lithium iron phosphate (LiFePO4) technology and features an intelligent display, flexible floor-standing installation with wheels, and smart monitoring capabilities.

Whether you want to store excess solar energy, support your home during power interruptions or expand your existing solar installation, the LVTOPSUN G4 lithium battery offers high-capacity energy storage for compatible solar inverter systems.

Key Features and Benefits

• 16.07kWh energy storage: High-capacity energy storage for residential and commercial applications.

• 51.2V 314Ah battery: Designed for compatible 48V-class solar energy storage systems.

• LiFePO4 lithium technology: Uses lithium iron phosphate cell chemistry with cobalt-free construction.

• 90% depth of discharge: Allows a high proportion of the battery's nominal energy to be used under specified operating conditions.

• High discharge capability: Supports up to 200A discharge current and 10.24kW discharge power.

• Smart touchscreen display: Monitor battery status and operating information through the integrated display.

• WiFi and Bluetooth features: Supports smart monitoring and connectivity features, subject to the system configuration.

• IP65 protection rating: Designed to resist dust and water ingress for suitable indoor or outdoor installations.

• Flexible installation: Floor-standing design with wheels for easier positioning and maintenance.

• Expandable energy storage: Supports up to 63 batteries in parallel in compatible configurations, with a stated scalable capacity of up to 1,012.83kWh.

• Inverter communication: RS232, RS485 and CAN communication interfaces support integration with compatible equipment.

Ideal Applications

The LVTOPSUN 16.07kWh lithium solar battery is suitable for:

• Residential solar power systems

• Large home backup power systems

• Commercial solar energy storage

• Off-grid solar installations

• Hybrid inverter systems

• Renewable energy storage

• Homes and businesses looking to increase solar self-consumption

Technical Specifications

• Brand: LVTOPSUN

• Model: LVTS-512314-G4

• Battery type: LiFePO4 lithium iron phosphate

• Nominal voltage: 51.2V DC

• Nominal capacity: 314Ah

• Nominal energy: 16.07kWh

• Charging current: 150A

• Charging power: 7,680W

• Discharge current: 200A

• Discharge power: 10,240W

• Short-circuit current: 540A

• Communication: RS232, RS485 and CAN

• Display: LCD display and battery status indicators

• Additional features: Bluetooth, WiFi and automatic fire-extinguishing device

• Dimensions (W × D × H): 480 × 235 × 874mm

• Weight: Approximately 120kg

• Installation: Floor-standing with wheels

• Protection rating: IP65

• Cycle life: Up to 8,000 cycles at 90% depth of discharge under specified test conditions

• Maximum parallel connection: 63 batteries

Why Choose the LVTOPSUN 16.07kWh Lithium Battery?

The LVTOPSUN LVTS-512314-G4 is designed for customers who need substantial energy storage capacity, smart monitoring and flexible installation. Its 16.07kWh capacity, high discharge power and expandable architecture make it a strong option for compatible residential and commercial solar installations.

The IP65-rated enclosure also makes it suitable for appropriately installed outdoor energy storage applications, subject to the manufacturer's installation and operating requirements.

Shop the LVTOPSUN 16.07kWh lithium solar battery at Ultra Solar City and find the right energy storage solution for your home, business or off-grid solar system.

Before purchasing, confirm compatibility with your inverter, installation requirements and the manufacturer's warranty terms.
