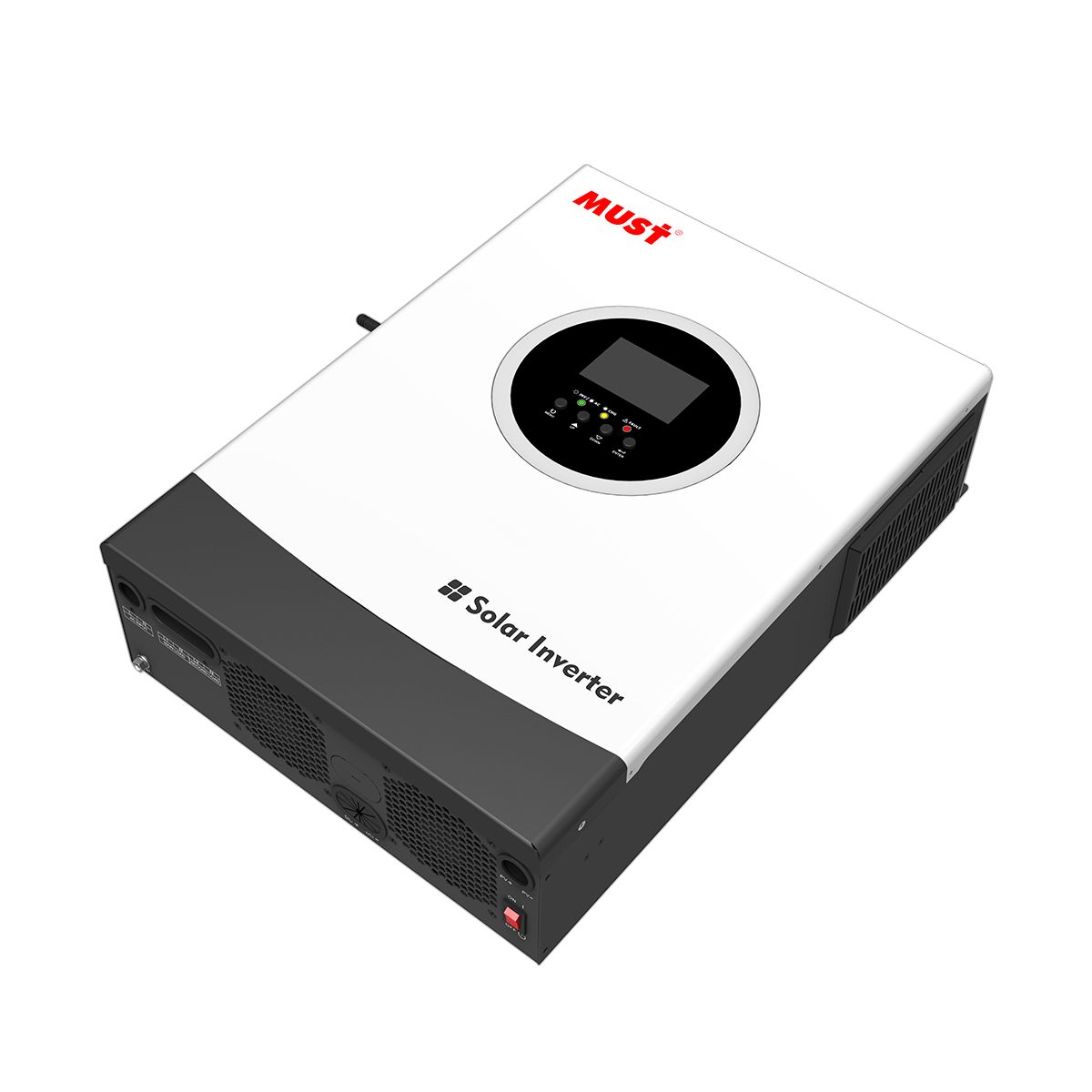

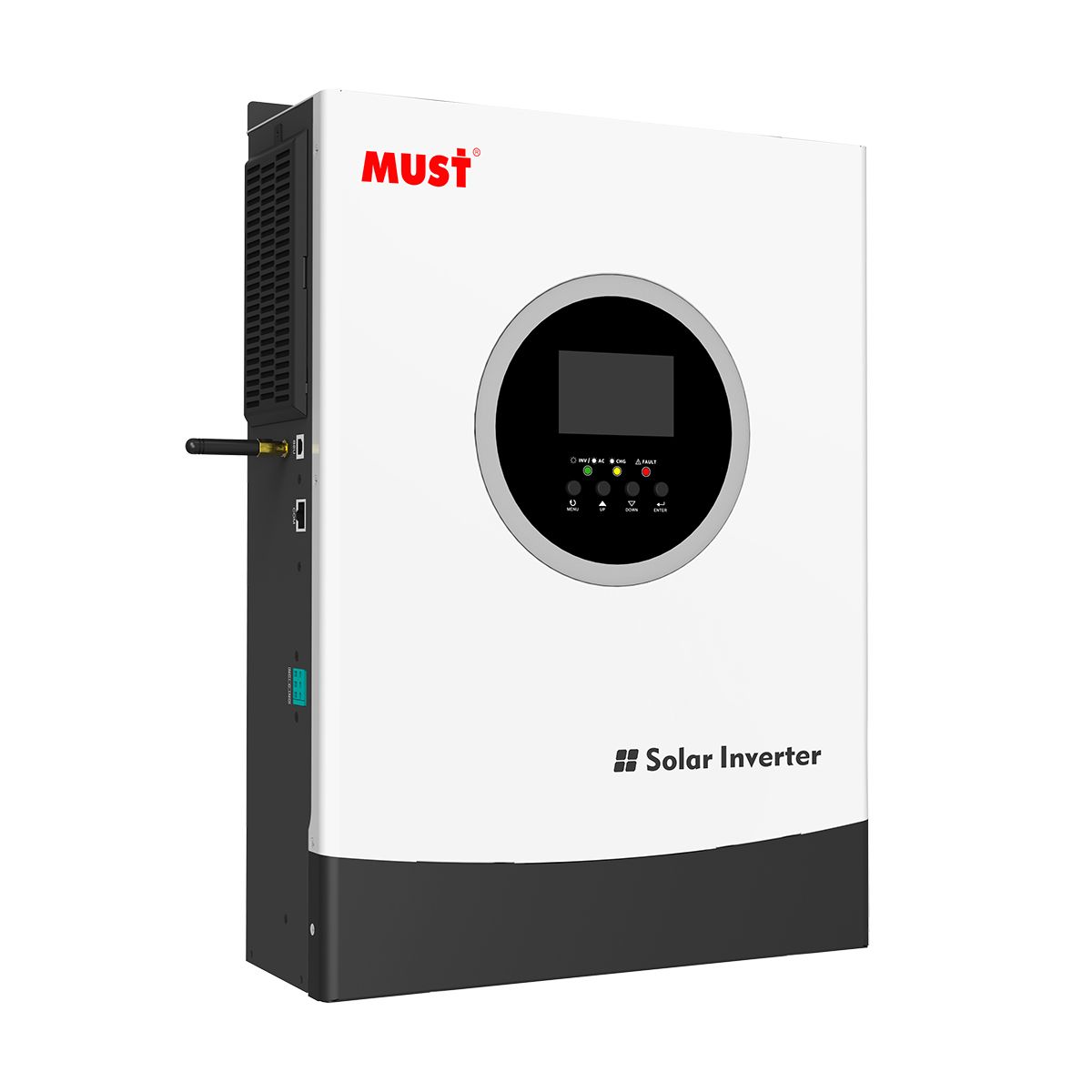

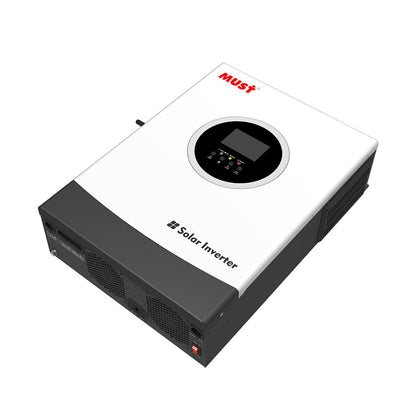

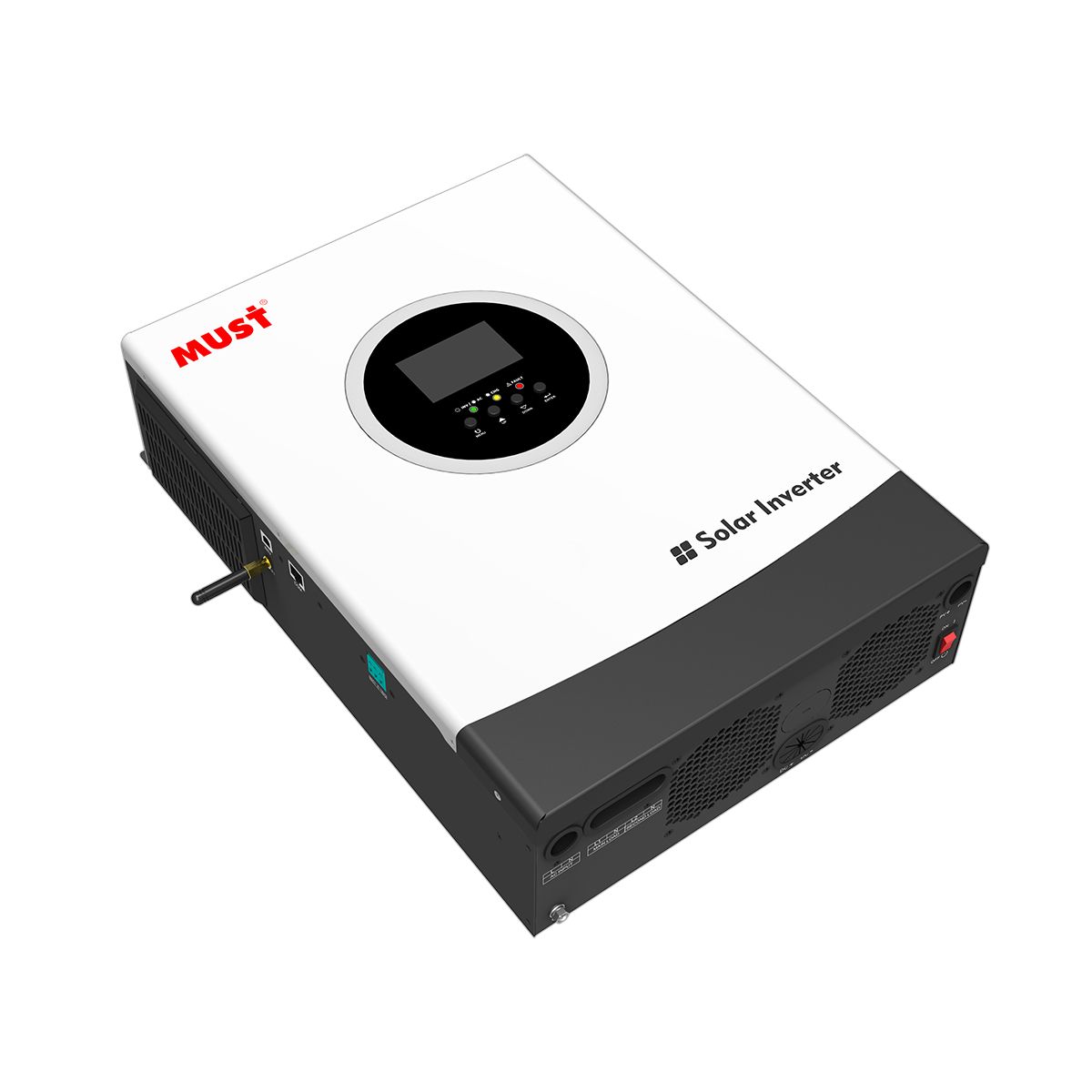

Must 6.2KVA 48V Hybrid Inverter - PV18-6248
Must 6.2KVA 48V Hybrid Inverter - PV18-6248
Low stock: 10 left
Couldn't load pickup availability
High Frequency Off Grid Solar Inverter | Dual output | DC 48V
PV1800 PREM is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger, and battery charger to offer uninterruptible power support in portable size. PV1800 PREM Series can run without a battery. The Maximum PV array open circuit voltage can reach 400V/450V. which Can help customers make full use of solar energy.
■ Pure sine wave output
■ Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
■ Built-in MPPT solar charge controller
■ Combining solar system, AC utility, and battery power source to supply continuous power
■ Overload, short circuit and Deep discharge protection
■ Cold start function
■ Support USB, RS485, CAN monitoring function
■ WIFI remote monitoring (Built in wifi module and antenna)
■ PV/ AC activation function
■ BMS communication function (CAN Port)
■ Dual output for smart load management
| MODEL | PV18-6248 PREM | ||||
| Nominal Battery System Voltage | 48VDC | ||||
| INVERTER OUTPUT | |||||
| Rated Power (Main+Second Load) | 6200VA/6200W | ||||
| Surge Power | 11000W | ||||
| Waveform | Pure sine wave | ||||
| AC Voltage Regulation (Batt.Mode) | 230VAC±5%(Setting) | ||||
| Inverter Efficiency(Peak) | 90~93% | ||||
| Transfer Time | 10ms (UPS / VDE4105) / 20ms (APL) | ||||
| AC INPUT | |||||
| Voltage | 230VAC±5% | ||||
| Selectable Voltage Range | 170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VED4105) | ||||
| Frequency Range | 50Hz / 60Hz(Auto sensing) | ||||
| BATTERY | |||||
| Normal voltage | 48VDC | ||||
| Floating Charge Voltage | 54.8VDC | ||||
| Overcharge Protection | 60VDC | ||||
| SOLAR CHARGER &AC CHARGER | |||||
| Maximum PV Array Open Circuit Voltage | 450VDC 60-360VDC | ||||
| Maximum PV Input Current | 28A | ||||
| Charging Algorithm | 3-Step (Flooded Battery, AGM / GEL / LEAD Battery), 4-Step (Li) | ||||
| Maximum PV Array Power | 6000W | ||||
| PV Array MPPT Voltage Range(Typ.) | 30~320VDC | 60~360VDC | |||
| Maximum Solar Charge Current | 100A | ||||
| Maximum AC Charge Current | 100A | ||||
| Maximum Charge Current | 80A | 100A | |||
| MECHANICAL SPECIFICATIONS | |||||
| Machine Dimension (W*H*D)(mm) | 318*454*122.5 | ||||
| Package Dimension (W*H*D)(mm) | 544.5*410*200 | ||||
| N.W (kg) | 9.0 | ||||
| 10.5 | |||||
| OTHER | |||||
| Humidity | 5% to 95% Relative humidity (Non-condensing) | ||||
| Operating Temperature | 0°C~50°C | ||||
| Storage Temperature | -15°C~60°C | ||||
| Warranty | 2years | ||||
| CERTIFICATION & STANDARDS | |||||
| CE-EMC+LVD (EN6100-6-3, EN6100-6-1+EN IEC62109-1, EN IEC62109-2) | |||||
