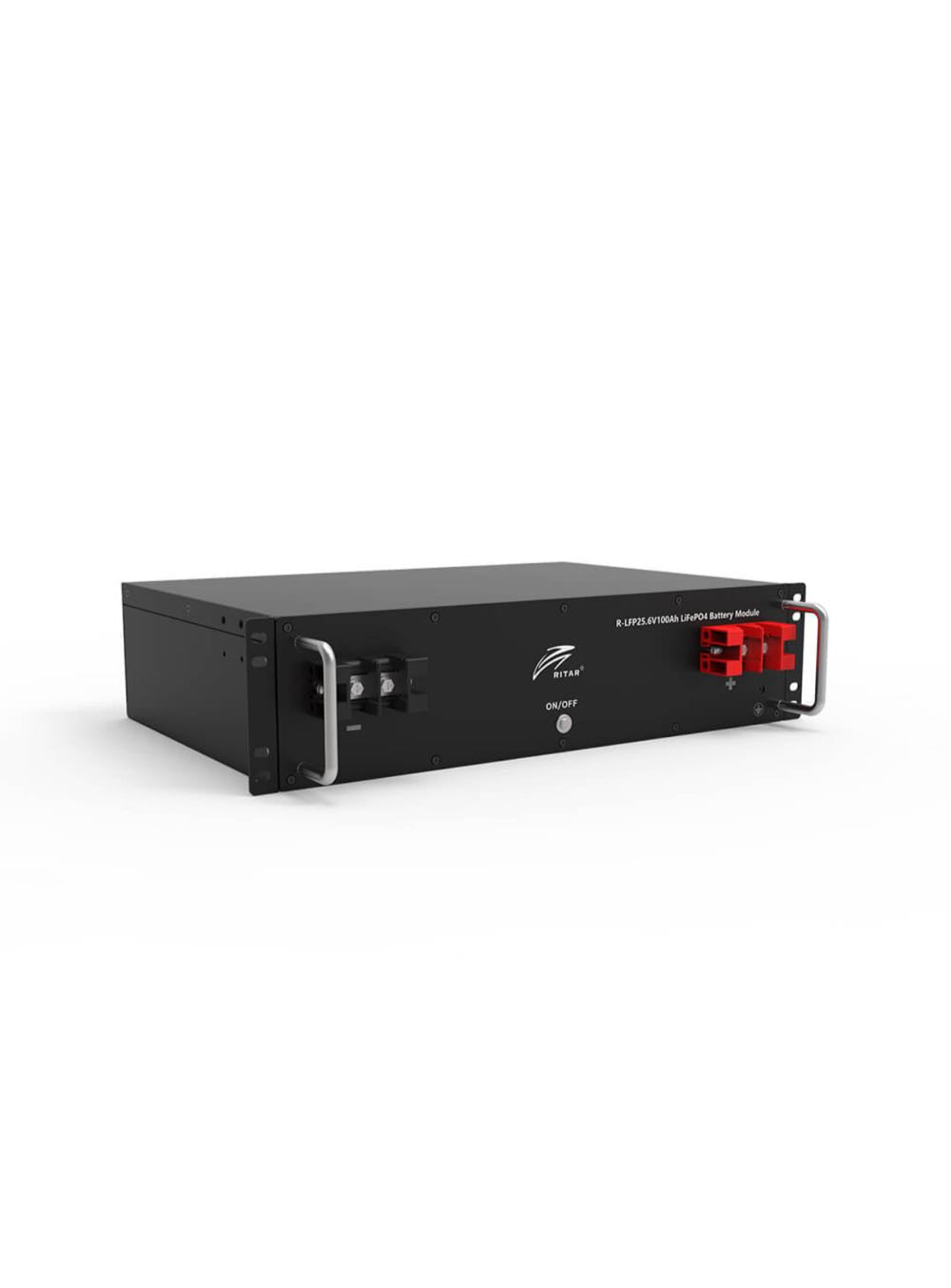

Ritar 25.6V 100AH 2.5KWH LITHIUM BATTERY
Ritar 25.6V 100AH 2.5KWH LITHIUM BATTERY
Couldn't load pickup availability
Ritar 25.6v 100ah Lithium LifePO4 2.56Kwh
SAFETY
+ Prismatic LFePO4 cells, Longer cycle life and much more safety.
+ Low voltage system, safety for application.
+ IEC62619, UI1973 certification for cell.
UN38.3, MSDS certification for system.
DESIGN
Standard 19" rack design, support rack or wall mounted.
Flexible and easily installation.
+ -20~+55C widely temperature range.
+ Maintenance free.
BATTERY MANAGEMENT SYSTEM (BMS)
+ Independent protection for charge and discharge.
+ Over charge protection, over discharge protection and over temperature, short circuit protection.
| Nominal voltage [V] | 25.6 |
| Nominal capacity [Ah] | 100 |
| Total energy [kWh] | 2.56 |
| Max. charging current [A] | 100 |
| Max. charging Voltage [V] | 29.2 |
| Charging voltage [V] | 27.6-28.8 |
| Max. discharging current [A] | 100 |
| End of discharge voltage [V] Product dimension [W*D*H] | 442*300*110 |
| Product weight [kg] | 23 |
| Protection class | IP20 |
| Operating humidity | 0-95% RH (No condensing) |
| Operating temperature range Communication interface | Standard Product: Charge: 0 ~ +55C; Discharge: -20 ~ +55C |
| Cycle Life | 6000 |
| Protection | OVP, LVP, OCP, OTP, LTP protection. |
| Certification | UN38.3, MSDS, CE |
| Series Support | No support |
| Parallel Support | Yes, Max 15pcs |
Battery Includes:
-Bolts
-Wall & Rack Brackets
-Manual
-Communication Cable
PRODUCT WARRANTY
Ritar warranties that the Product retains either eighty percent (80%) of Usable
Energy for Five (5) years from the shipment date, or the Cycle Life 3000,
whichever comes first.
Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
