SUN SOLAR 51.2V 100AH 5.12KWH A-GRADE RACK MOUNT LITHIUM BATTERY CNN5120RN3U

SUN SOLAR 51.2V 100AH Lithium Battery - High-Performance Energy Storage Solution

Looking for a reliable and efficient energy storage system? Our 51.2V 100AH Lithium Battery is designed to meet the needs of both residential and commercial applications. With superior energy density, long lifespan, and advanced protection features, this Lithium Battery is an ideal choice for solar energy storage and backup power systems.

Key Features of the 51.2V 100AH Lithium Battery

• Ultra-High Safety with LiFePO4 Technology: The LiFePO4 battery is one of the safest lithium battery chemistries available, providing excellent thermal stability and protection against short circuits and overcharging.
• Built-in Battery Management System (BMS): The integrated BMS ensures multiple protections, extending the battery's lifespan and improving its performance.
• Active Balancing and Low Self-Consumption: This Lithium Battery features an active balancing function to optimize cell performance, ensuring minimal energy loss and longer service life.
• Lightweight Design for Quick Installation: The 51.2V 100AH Lithium Battery comes in a compact module design, making it easy to install and maintain. This design also helps reduce space requirements.
• Scalable System: You can easily expand your energy storage by paralleling up to 16 modules, giving you the flexibility to scale your power needs.
• Wide Operating Temperature Range: With a wide range of operating temperatures, this Lithium Battery is suitable for a variety of applications, including in extreme climates.

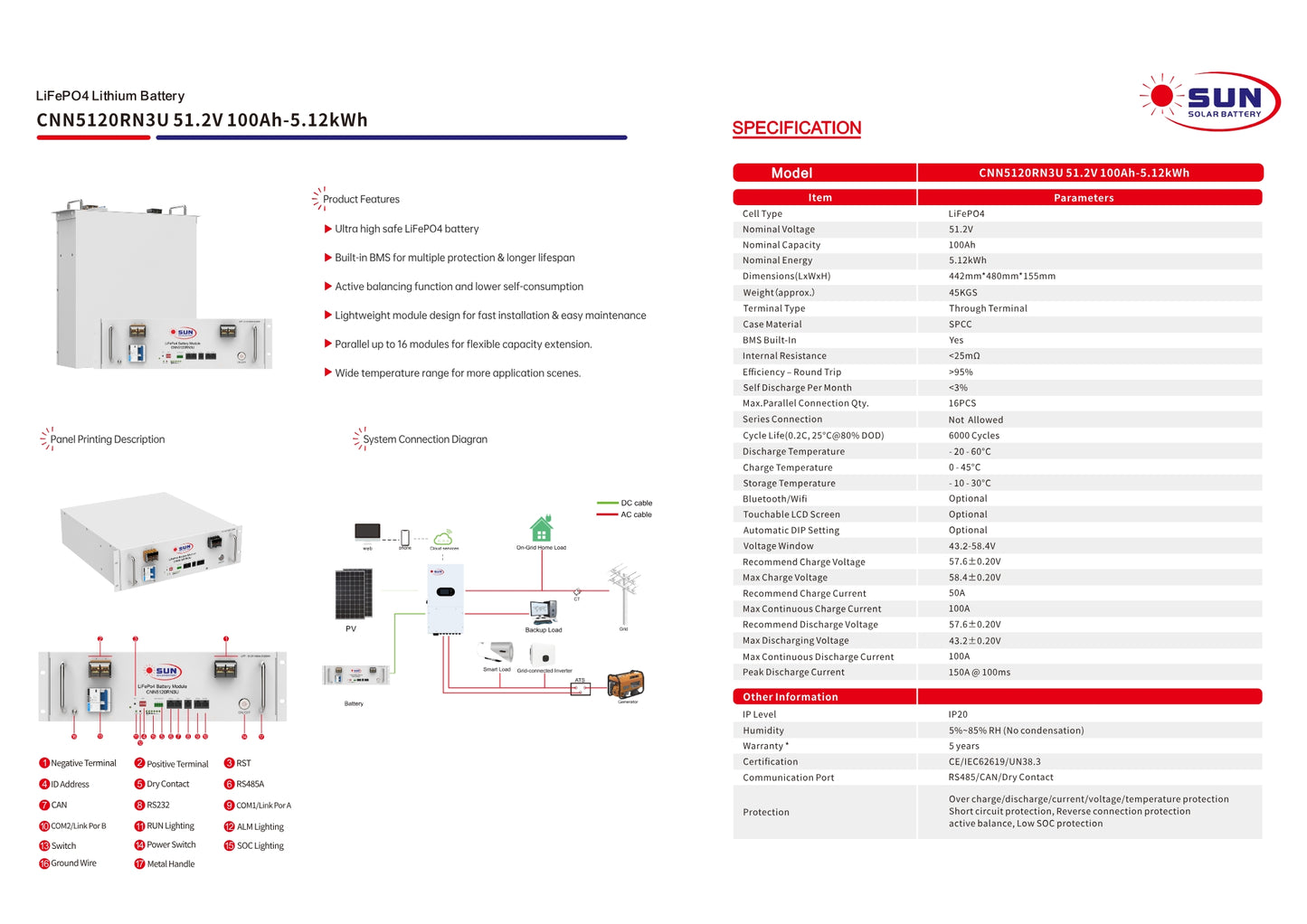

Specifications of the 51.2V 100AH Lithium Battery

• Cell Type: LiFePO4 (Lithium Iron Phosphate)
• Nominal Voltage: 51.2V
• Nominal Capacity: 100Ah
• Nominal Energy: 5.12kWh
• Dimensions (LxWxH): 442 x 480 x 155 mm
• Weight (approx.): 45kg
• Terminal Type: Through Terminal
• Case Material: SPCC (Steel Plate Cold-rolled Coil)
• BMS Built-In: Yes
• Max. Parallel Connection Qty: Up to 16 Modules
• Cycle Life: 6000 cycles (at 80% depth of discharge)
• Recommended Charge Voltage: 57.6V
• Recommended Charge Current: 50A
• Max Discharge Voltage: 43.2V
• Max Continuous Discharge Current: 100A
• Peak Discharge Current: 100A

What's Included in the Box:

• 51.2V 100AH Lithium Battery
• Battery Cables & Mounts
• Warranty Card
• Communication Cable
• User Manual
• Expansion Bolts
• Certificate of Conformity

Warranty and Installation Requirements

• 5-Year Warranty: Our Lithium Battery comes with a 5-year warranty for added peace of mind.
• Installation Requirements: To validate your warranty, all inverters and batteries must be installed by a certified electrical wireman or Master electrician registered with the Department of Labour. A valid Certificate of Compliance (COC) must be issued for the installation of the backup or solar system. Claims without installation photos, a valid COC, or proof of a qualified installer will be void.

Why Choose Our 5kWh Lithium Battery?

Our 5kWh Lithium Battery offers a powerful, efficient, and sustainable energy storage solution for homes and businesses. With advanced safety features, long cycle life, and scalable capacity options, it's an ideal solution for solar power systems and backup energy storage.
