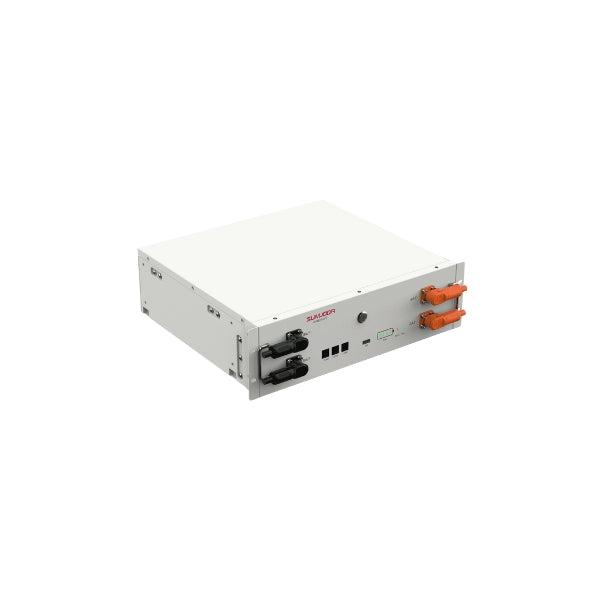

Sunwoda: Atrix-5 Battery Lithium Ion 5.12KWH 51.2V 100AH 1C Rack Mount – Uses Cable Kit (Atrix-5)

General Data
• Battery Type: Lithium-Ion
• Model: Atrix-5
• Nominal Energy: 5KWH
• Rated Voltage: 51.2V
• Charge / Discharge Cut Off Voltage: 44.8VDC to 55.2VDC
• Roundtrip Efficiency: >95%
• Rated Charge / Discharge Current: 50A / 50A
• Maximum Charge / Discharge Current: 100A / 100A
• Communication Interface: CAN2.0 / RS485
• Connection Method: Quick Plug & Unplug Terminals
• State Indicator: SOC and Error Status

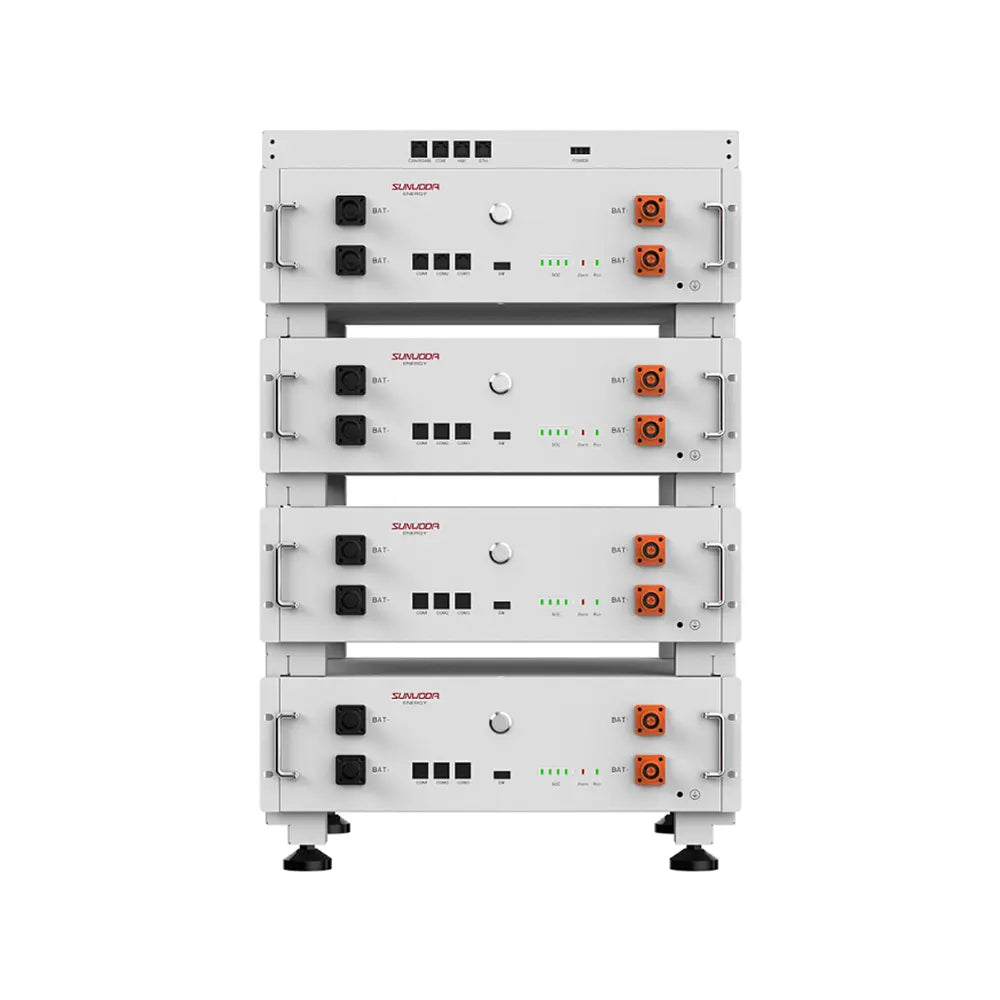

• Scalability: Maximum 8 in Parallel (Maximum 40KWH)

COMPATIBLE WITH ALL MAJOR BRANDS

LUXPOWER APPROVED BATTERY

Operating Conditions
• Installation Location: Indoor
• Operating Temperature: -10°C to 50°C
• Recommended Operating Temperature: 15°C to 30°C
• Storage Temperature: -30°C to 60°C
• Humidity: 10% to 90% Non Condensing
• Enclosure Rating: IP20
• Altitude: <2000m
• Cooling: Natural Convection

Certification
• Safety: IEC62619 / CE / UL1973 / FCC / UL9540A
• Transport: UN38.3
