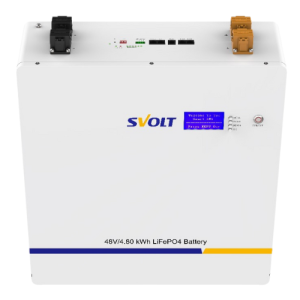

SVOLT 48V 100AH 4.8KWH A-Grade Lithium battery

SVOLT 48V 100Ah A-Grade 4.8kWh Lithium Battery - High-Performance Energy Storage Solution

The SVOLT 48V 100Ah A-Grade Lithium Battery is a cutting-edge energy storage solution designed for superior performance, long-term reliability, and sustainability. Manufactured by the globally recognized SVOLT—a leader in the battery industry in partnership with Haval Motor Group—this 4.8kWh Lithium Battery utilizes A-Grade Battery Cells to deliver exceptional power, capacity, and efficiency.

Key Features of the SVOLT 48V 100Ah 4.8kWh Lithium Battery

• Top-Tier A-Grade Lithium Technology: The SVOLT 48V 100Ah battery uses high-quality LiFePO4 (Lithium Iron Phosphate) cells, ensuring a longer lifespan, greater efficiency, and enhanced safety for residential, commercial, and industrial applications.
• Maintenance-Free & Environmentally Friendly: The SVOLT 48V 100Ah A-Grade battery is designed for low-maintenance operation and is ideal for environmentally sensitive areas. Its eco-friendly design also supports recycling, contributing to sustainability efforts.
• Versatile Application: Whether for solar energy storage, electric vehicles, telecommunications, medical equipment, or industrial use, the 4.8kWh Lithium Battery meets a wide range of power needs. It’s a perfect choice for backup power systems, UPS, and other critical applications.
• Exceptional Efficiency: With a round-trip efficiency of 99%, this Lithium Battery ensures minimal energy loss, maximizing your energy storage performance.
• Scalable and Flexible: The SVOLT 48V 100Ah system can be easily expanded, with up to 16 parallel connections, allowing you to scale your energy storage capacity as needed.

Specifications of the SVOLT 48V 100Ah 4.8kWh Lithium Battery

• Energy Capacity: 5.09kWh
• Battery Type-Chemistry: LiFePO4 (Lithium Iron Phosphate)
• Nominal Voltage: 48V
• Nominal Capacity: 100Ah
• Energy Density: 4.8kWh
• Dimensions (LxWxH): 688 x 447 x 211mm
• Weight: 49.5kg
• Max. Continuous Discharge Current: 100A
• Peak Discharge Current: 150A
• Max. Parallel Connections: Up to 16 Modules
• Self Discharge per Month: <3%
• Cycle Life (at 80% DOD): 6000 cycles
• Charge Voltage: 43.2V - 58.4V
• Max Charge Voltage: 57.6V ± 0.20V
• Charge Current: 58.4V ± 0.20V
• Discharge Voltage: Max 43.2V ± 0.20V

Additional Features and Options

• LCD Screen: Optional LCD display for real-time performance insights.
• Heating Function: Optional heating feature for cold environments.
• Voltage Window: Customizable voltage window for specific applications.

What’s in the Box:

• 1 x SVOLT 48V 100Ah A-Grade Lithium Battery
• 1 x Red (Positive) Battery Cable
• 1 x Black (Negative) Battery Cable
• 1 x Ethernet Cable
• 1 x User Manual
• 1 x Wall Mount Bracket
• 1 x Warranty Card

Warranty and Installation Requirements

• 5-Year Warranty: The SVOLT 48V 100Ah Lithium Battery comes with a 5-year warranty for added peace of mind.
• 10-Year Service Warranty: Additional service coverage for long-term use.
• Installation Requirements: All inverters and batteries must be installed by a qualified electrical wireman or master electrician registered with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued post-installation. Any warranty claims submitted without installation photos, a valid COC, or proof of a qualified installer will be void.
